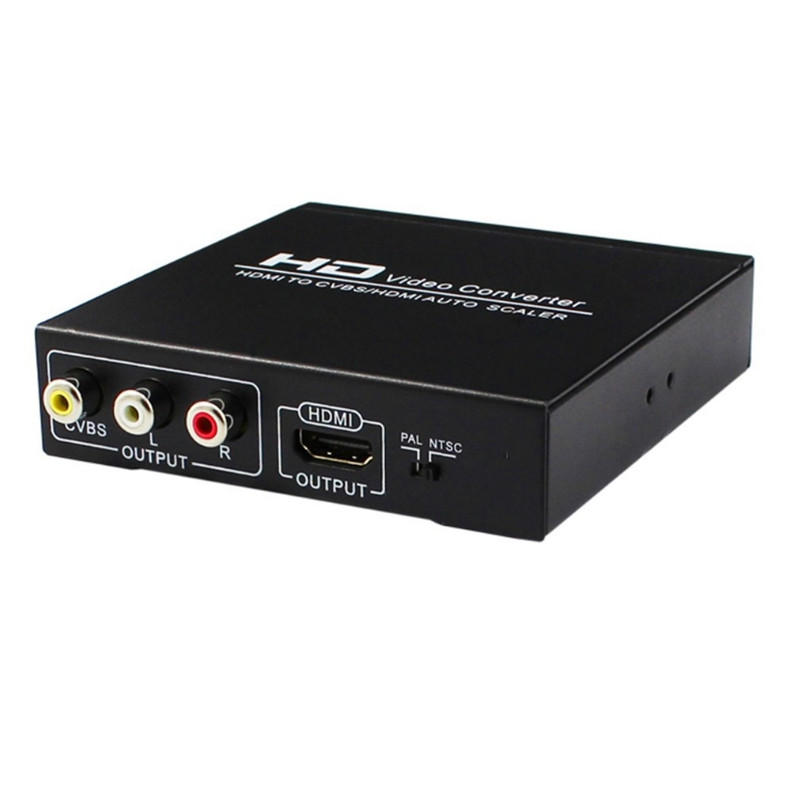

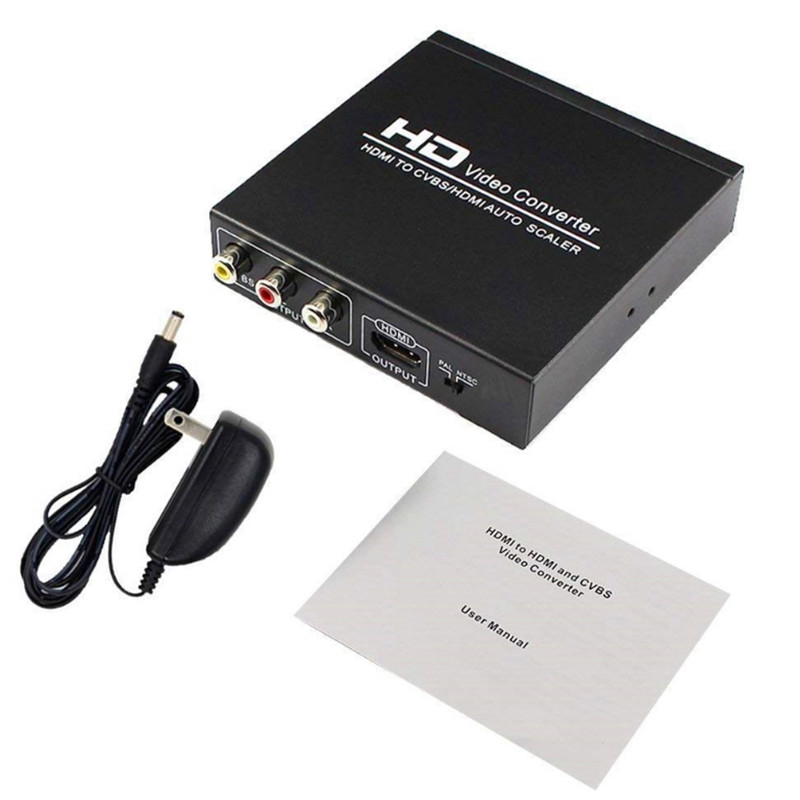

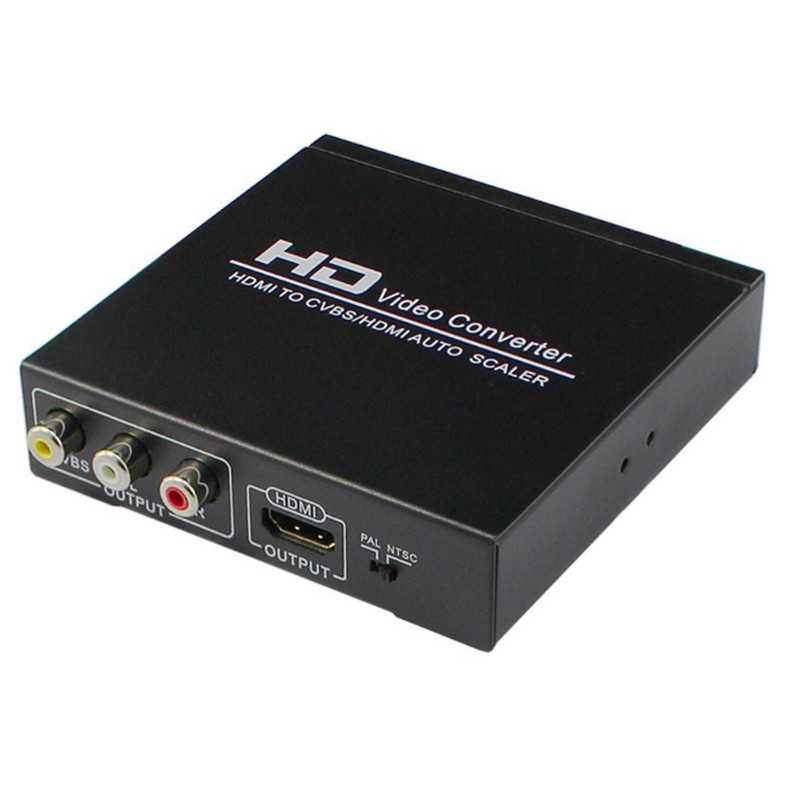

Description: HDMI one-to-two splitter with AV output, HDMI output

1. Product features

     This is an HDMI to CVBS signal converter. It can also bypass HDMI output, which can convert HDMI digital signals to AV (CVBS) composite video signals and FL / FR stereo audio signals, allowing customers to convert high-definition HDMI audio and video signals. Converted to ordinary TV, VHS green player, DVD recorder, etc. can receive CVBS signal (standard resolution 480i, 576i,) supports NTSC / PAL two different formats

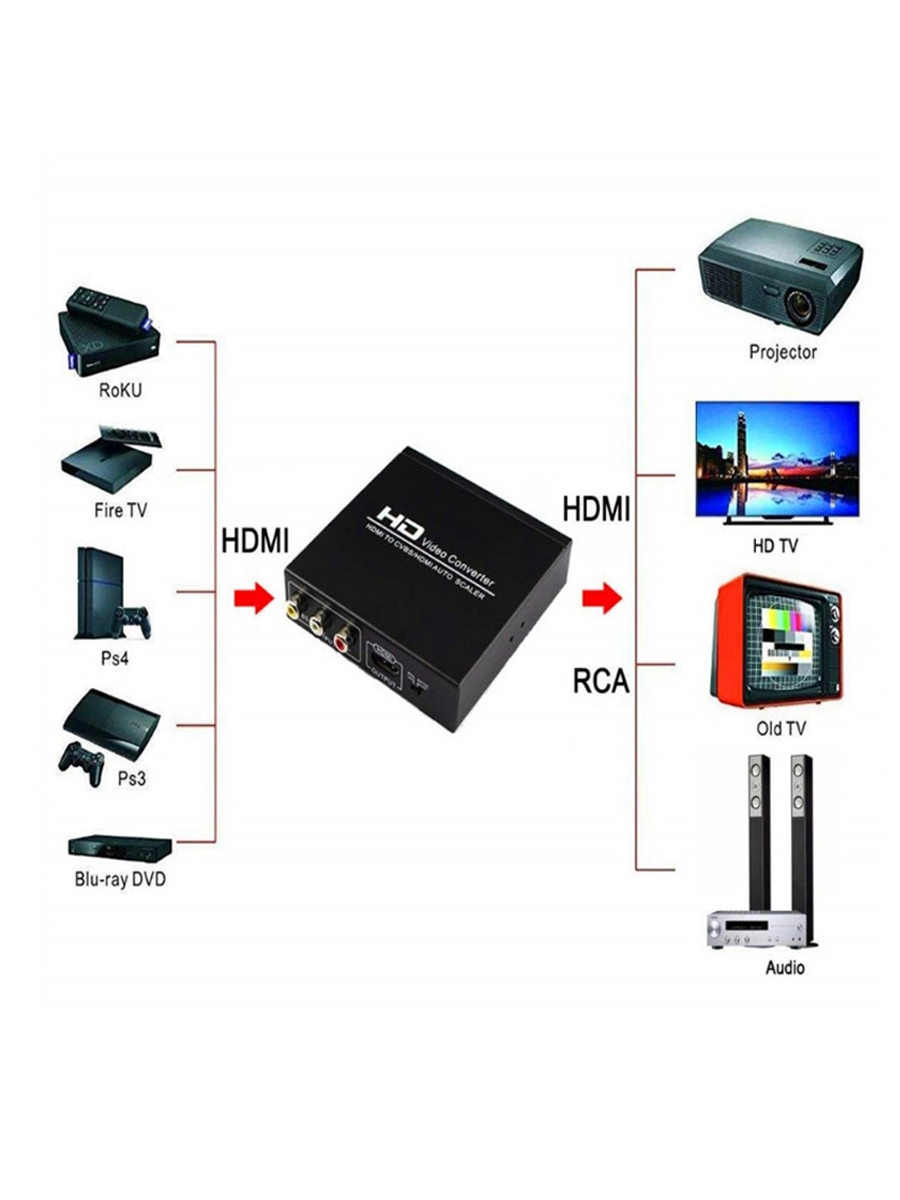

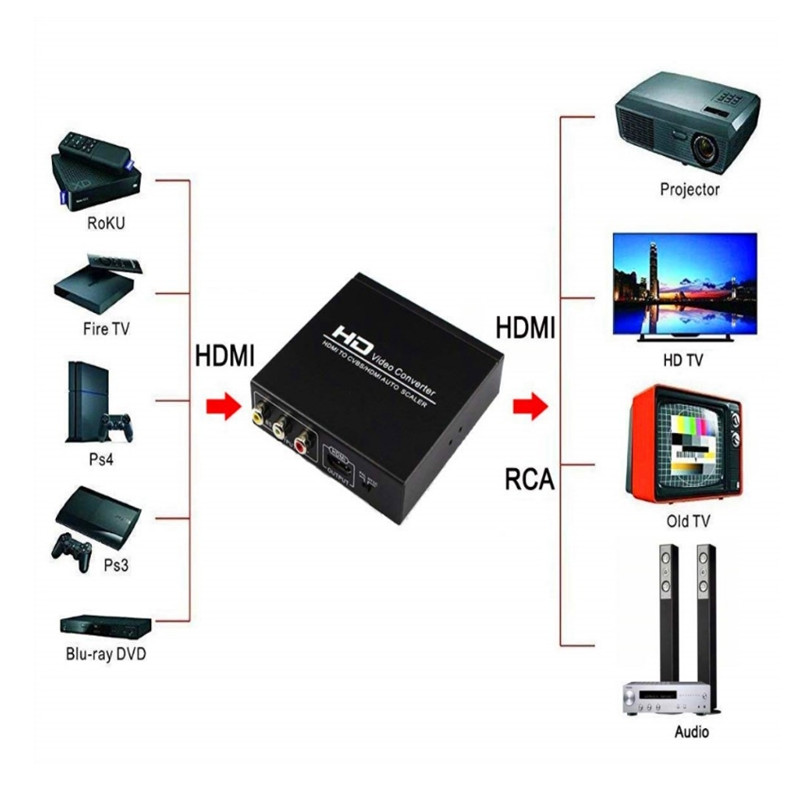

At the same time, the bypass HDMI output can also be used to connect high-definition TVs without occupying the HDMI output terminals of the original machine! Divide the original HDMI into two and connect two TVs with different input interfaces

Product Features:

1. Convert the HDMI high-definition signal through SCALE DOWN video processing to convert 576I, 480I (PAL / NTSC) video signal output;

2. Output HDMI high-definition signal by-pass (Bypass);

3. The zoom function of ZOOM will force the output CVBS to the required screen, not to exceed the edge of the TV display;

4. Automatically recognize HDCP, and forcefully release the KEY (HDCP) carried by the front-end HDMI;

5. Convert HDMI digital audio to AUDIO analog stereo through DAC digital-analog chip processing;

6. Use video processing technology to enhance the brightness, contrast and color of the image;

7. The converted CVBS effect is full of transparency (unlike the CVBS signal of the previous generation HDMI to CVBS has a hazy feeling)

8. AV output 4: 3, 16: 9 switch output, the 4: 3 picture is truly restored after conversion, and the image is severely flattened on the 16: 9 TV

Specifications:

1) Hardware conversion, plug and play, without any software driver

2) Compatible with HDMI1.3

3) Support NTSC and PAL output

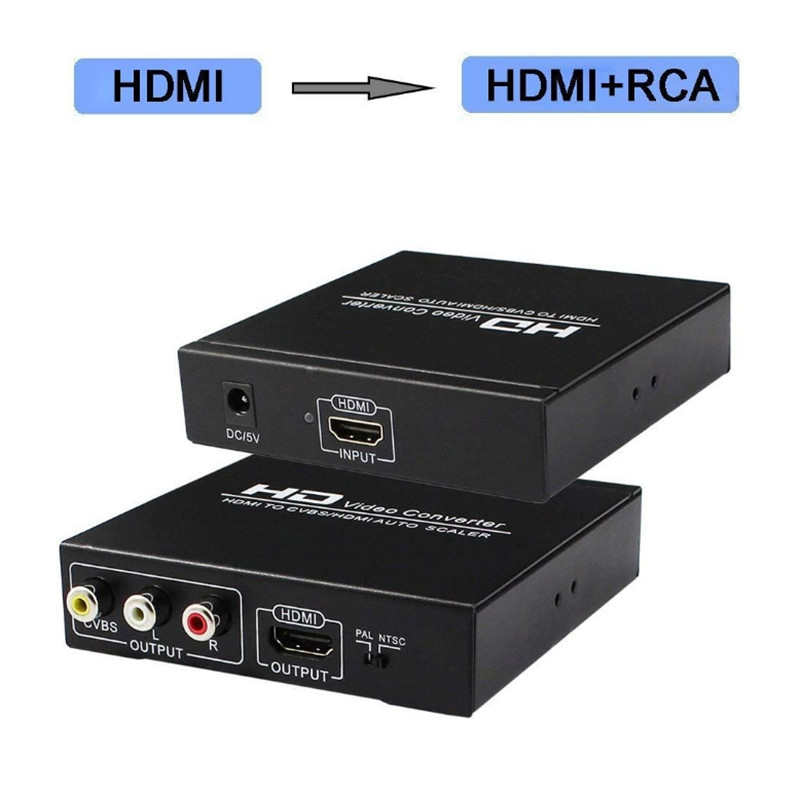

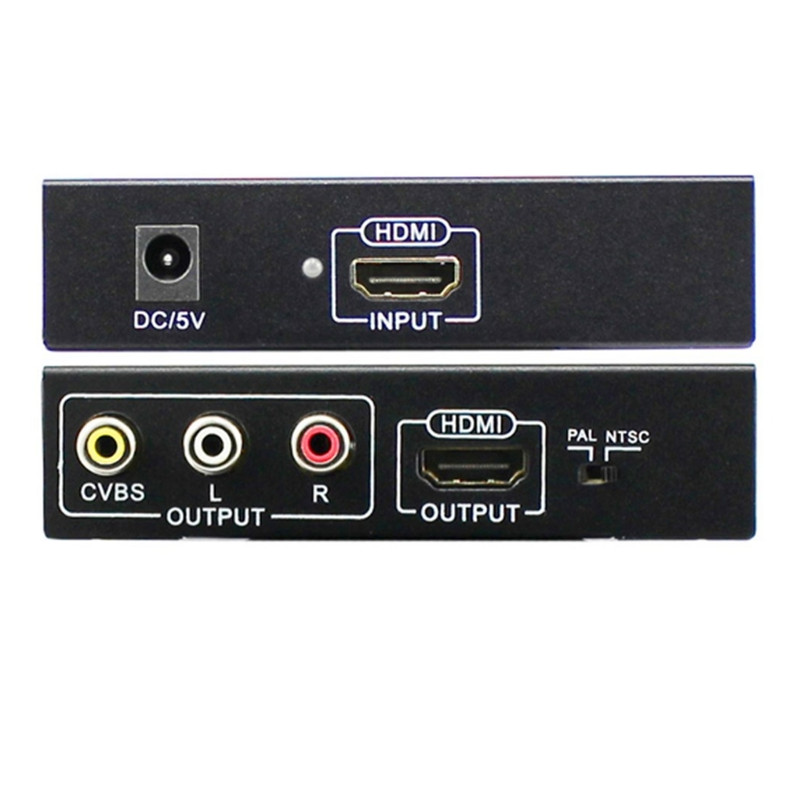

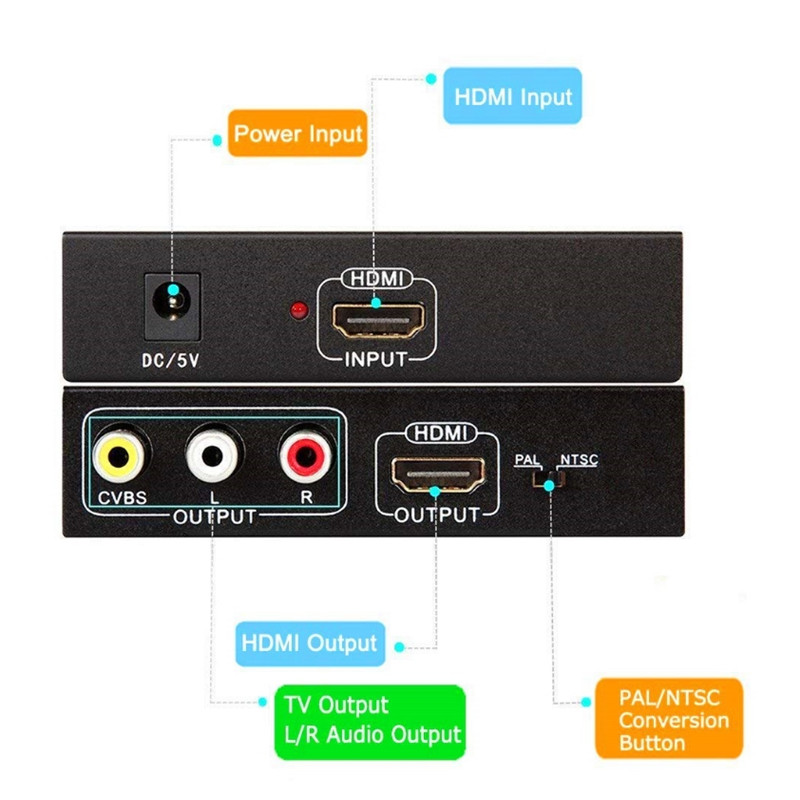

4) One set of HDMI input; one set of HDMI output; one set of AV output; one set of stereo output;

A. Input terminal: -------------- HDMI x 1 input;

B. Output terminal: -------------- Bypass HDMI x 1 output

C. Video output terminal: VIDEO x 1 output

D. Analog audio output terminal --------- L / R x 1 output

5) HDMI input format: 480P, 576P, 720P, 1080I, 1080P @ 60Hz and compatible with DVI mode: 800x600, 1024x768, 1280x720, 1280x1024, 1920x1080 / @ 60hz HDMI output in several modes, synchronous output with AV , 576I (optional)

Audio output: left and right channels (L / R)

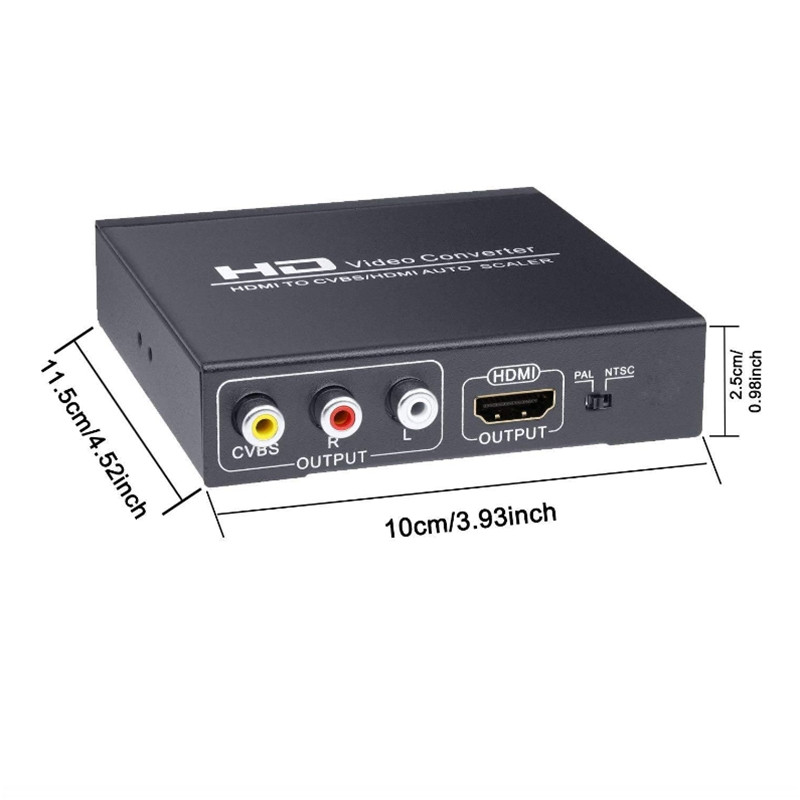

Appearance size: 100mm (W) x105mm (D) x 25mm (H)
