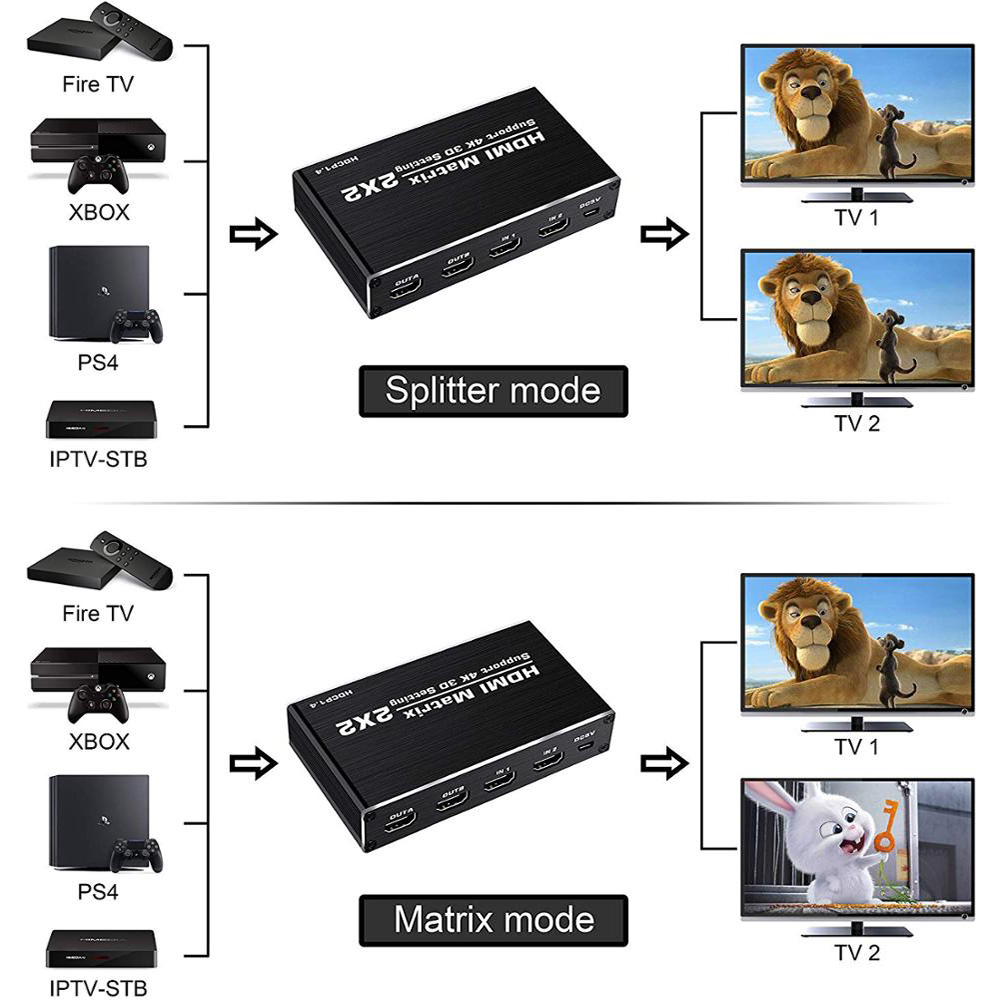

Description: The HDMI matrix 2x2 can connect 2 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows 2 HDMI devices to be switched easily to 2 HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo headphone. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training enviroments.
Features: 1. Support HDMI 2.0/HDCP 1.4 2. Support 3D video format 3. Support highest resolution up to 4K@60Hz, YUV 4:2:0 4. Support deep color 8/10/12 bit 5. 2 HDMI inputs switch and split to 2 HDMI displays 6. Extra power is needed.(DC5V/1A)
Specifications: HDMI version：HDMI2.0 HDMI resolution：up to 3840x2160P/60Hz Support Video format：8/10/12 bits deep color Support Audio format：DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD Max bandwidth：340MHz Max baud rate：10.2Gbps Input cable distance：10m AWG26 HDMI1.4 standard cable Output cable distance：15m AWG26 HDMI1.4 standard cable Max working current：600mA Power adapter formatInput: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/2A Dimensions(L*W*H)：170X56X24mm Weight：380g

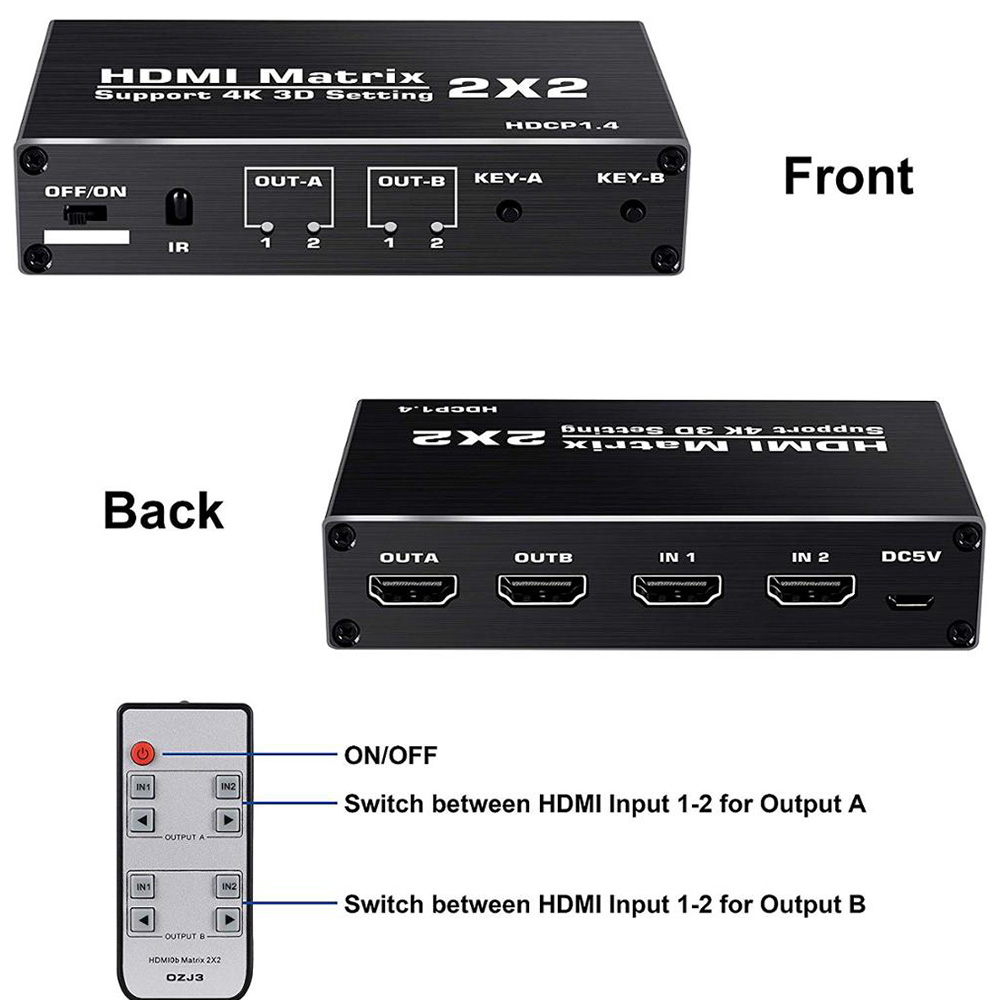

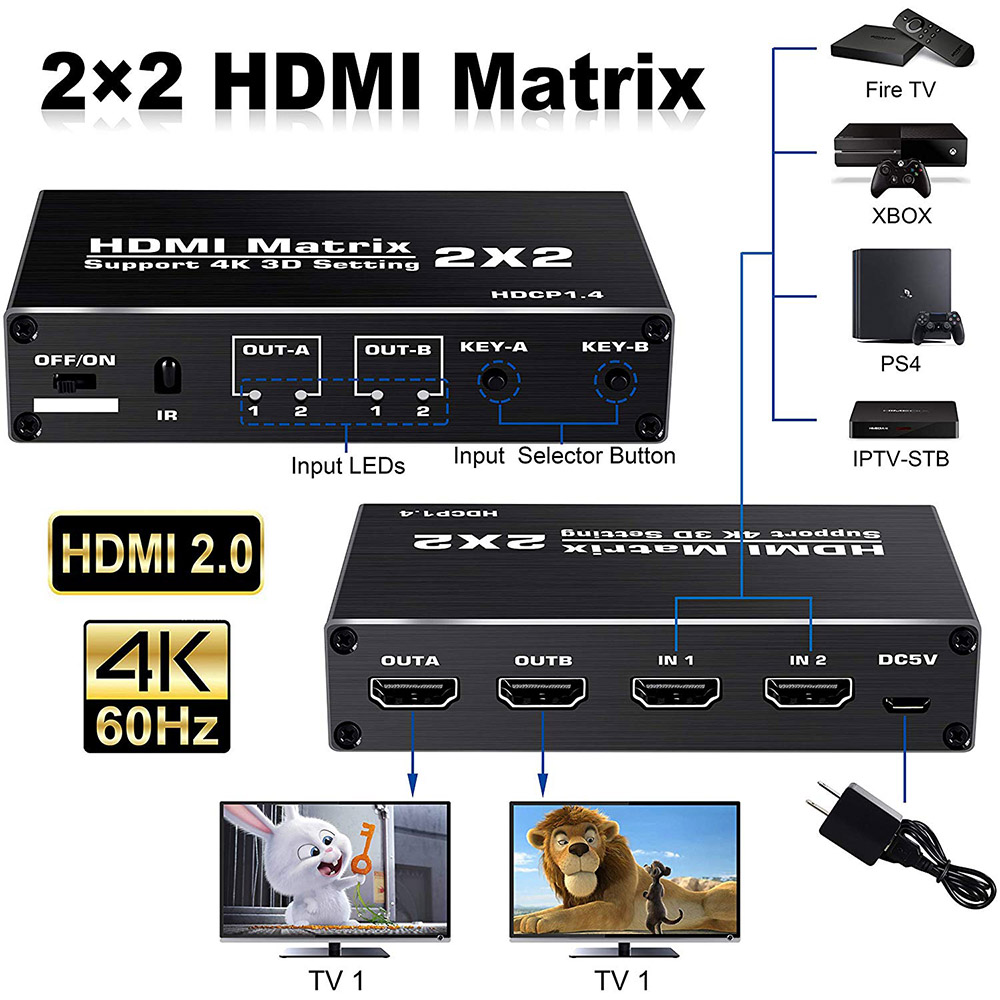

Instruction of Buttons and LED 1.Instruction of LED: IN1-IN2 indicator is corresponding input sources out from OUT A or OUT B. 2.Operation of Buttons: KEY A or KEY B is used to switched the corresponding input source out from OUT A or OUT B.

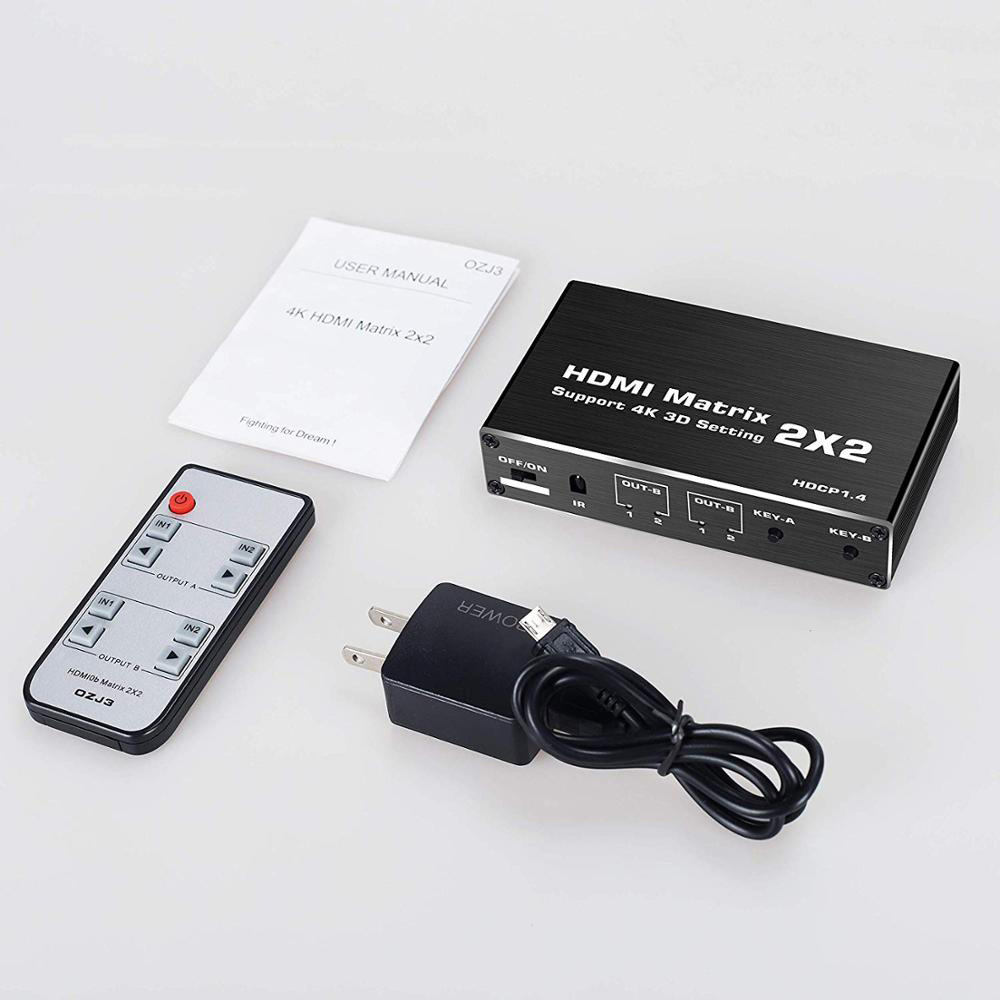

NOTE: 1.It is a normal phenomenon that when you use the button/remote to select the signal, there will be a black screen 3seconds in your TV/other output devices. Please be patient for it. When the screen will displayed normal again, there may be a sequence. 2.There are 4 buttons on the remote control are for backup with a black triangle mark. 3.This HDMI Matrix support display resolutions only up to YUV 4:2:0, 4K@60Hz HDCP1.4, if exceed this value, the video display can only support 1080P. 4.If video display can’t support 4K, the resolution of the signal source needs to be lowered accordingly Package Contents: 1 * HDMI Matrix 1 * IR Remote Control 1 * Power Adapter(3 Pin) 1 * User Manual
1 * Box packaging
