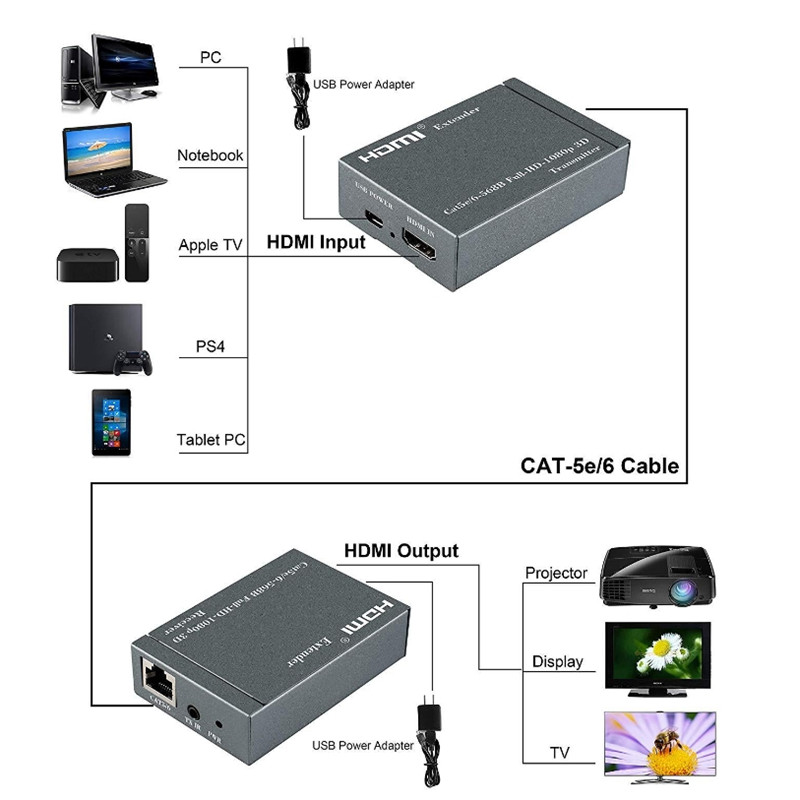

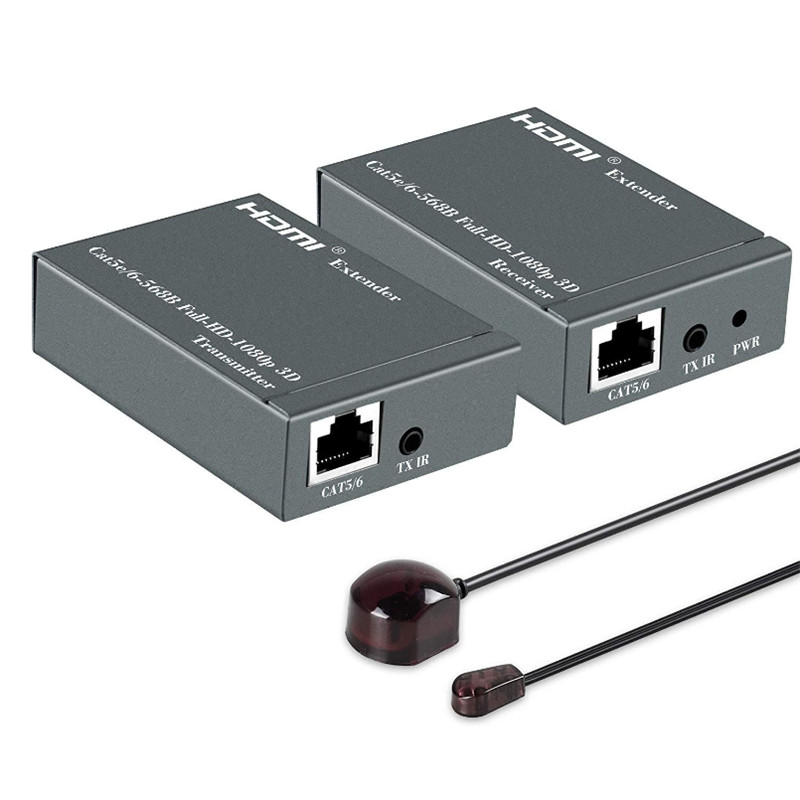

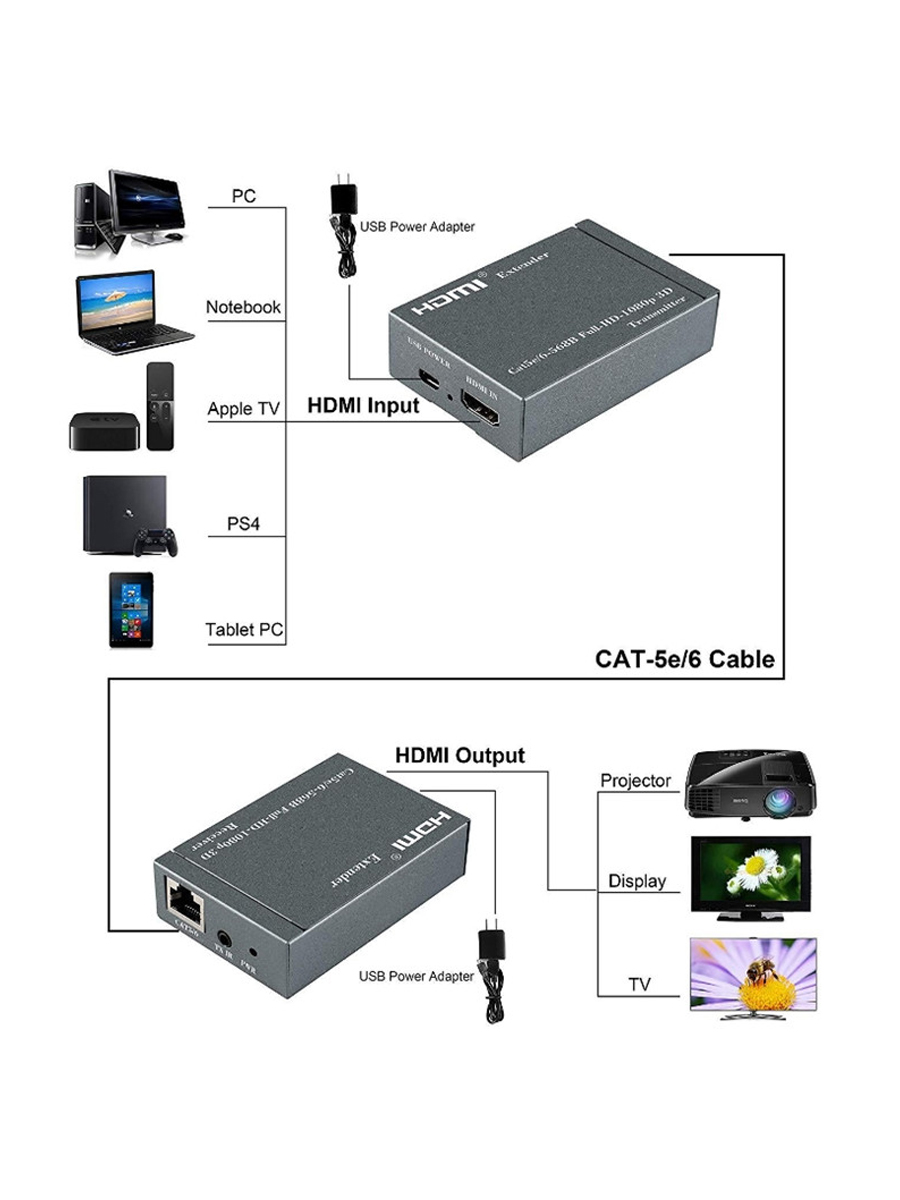

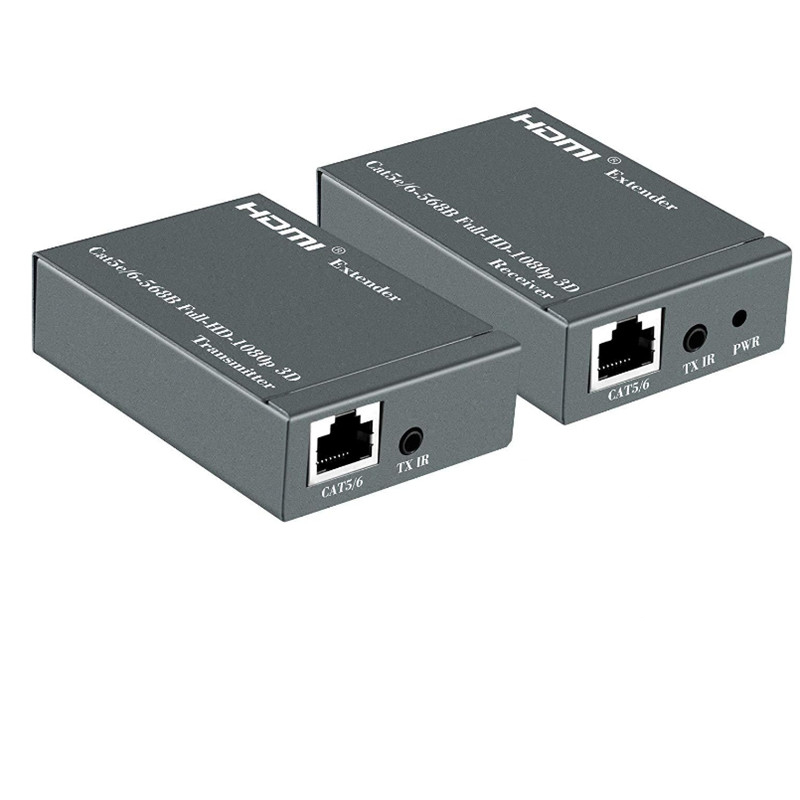

Description: The extender uses single cat-5E or cat-6(recommended) cables instead of HDMI cable to transmit high definition signal up to 60m, cutting down the cost. It is designed to supply for long distance transmission of high definition signal. Our devices offer solutions for noise, space and security concerrns, data center control, information distribution, conference room presentation, school and corporate training enviroments.
FEATURES: · Support HDMI 1.4a · Support 3D · Support highest video resolution 1080p/60Hz · Support 1.65Gbps data rate and tmds clock up to 165MHz · Support 8/10/12 bit deep color · Support AWG26 HDMI standard cable, input up to 15m, output up to 20m · Signal transmission: By using single cat-5e or cat-6(recommended) cable instead of HDMI cable, it can extend the distance up to 60m between TX and RX. · No loss of quality · Need 5V/1A power supply
Support Audio Input： DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output：24/50/60fs/1080p/1080i/720P//576p/576i/480P/480i Support Audio Output：DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD Max bandwidth：165MHz Max baud rate：1.65Gbps Input video signal：0.5-1.5 Volts pp Output DDC signal：5Volts p-p (TTL) Temperature：-15 degree to +55 degree Using humidity：5% to 90% RH (no condensation) TX Max working current：510mA RX Max working current：100mA Power adapter format：Input: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/1A Dimensions(L*W*H) ：81X43X22mm TX weight ：100g

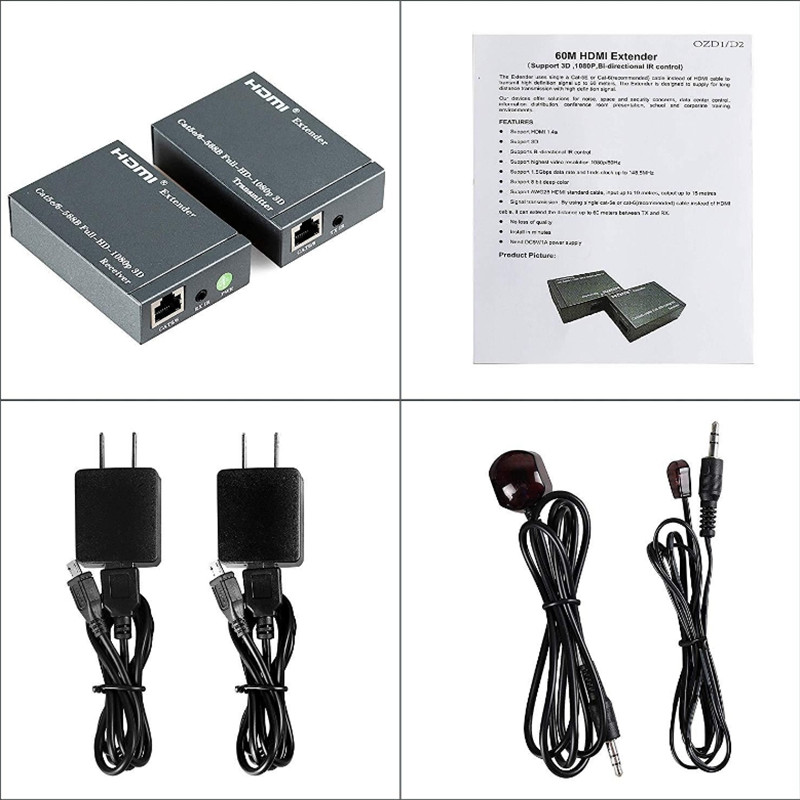

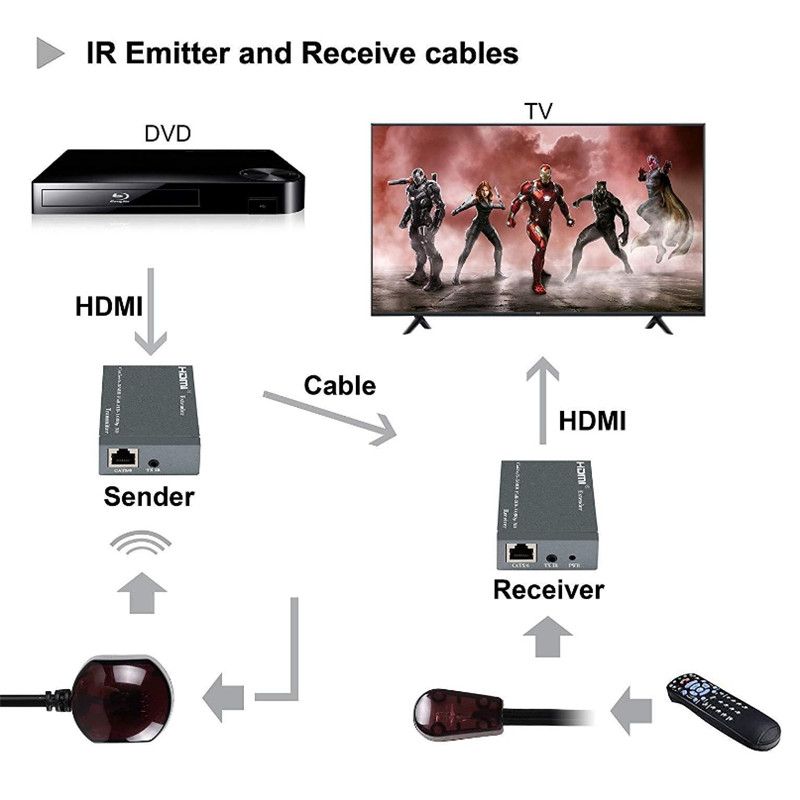

Package: 1pc TX Extender/1pc RX Extender 2 * Micro USB Power Adapter Bi-directional IR cable*1pair 1 * User Manual
