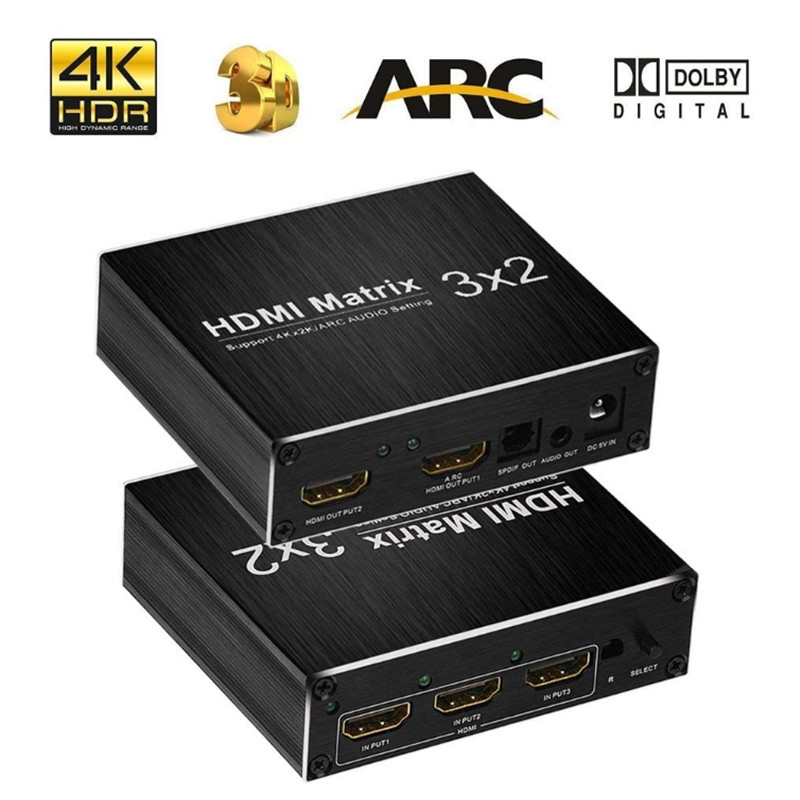

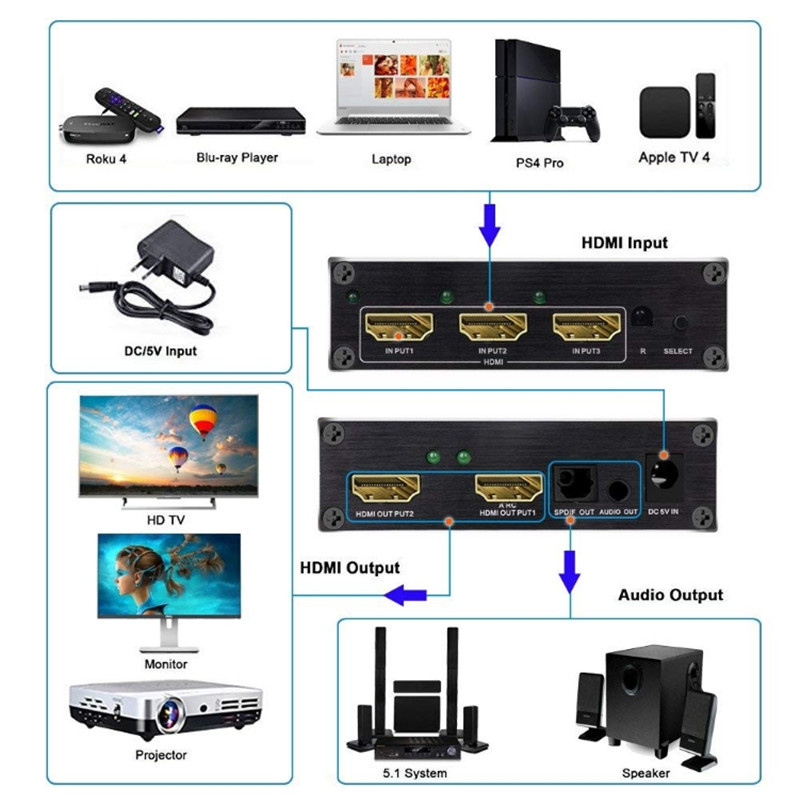

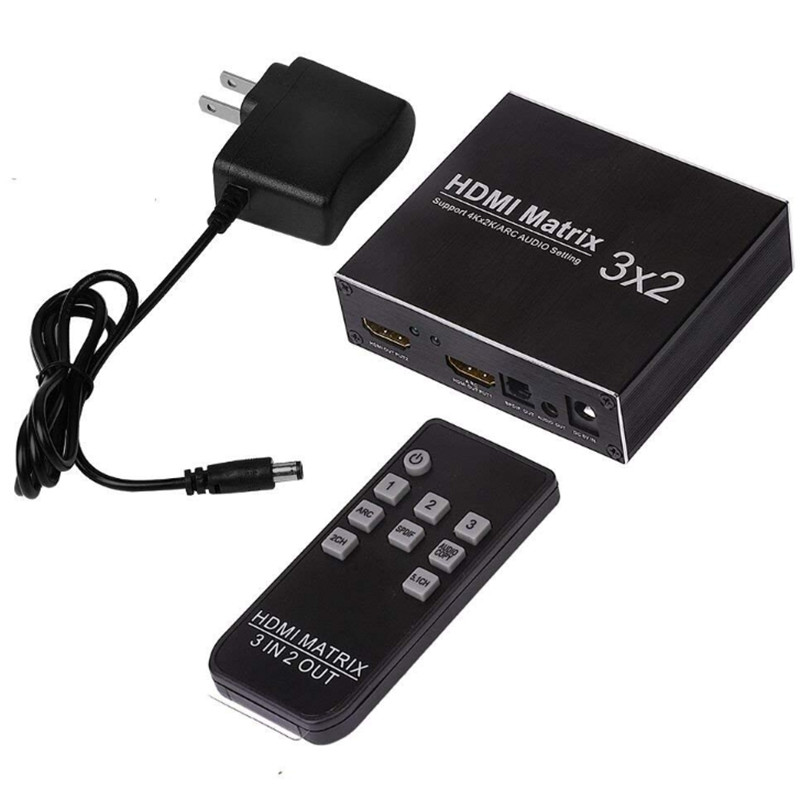

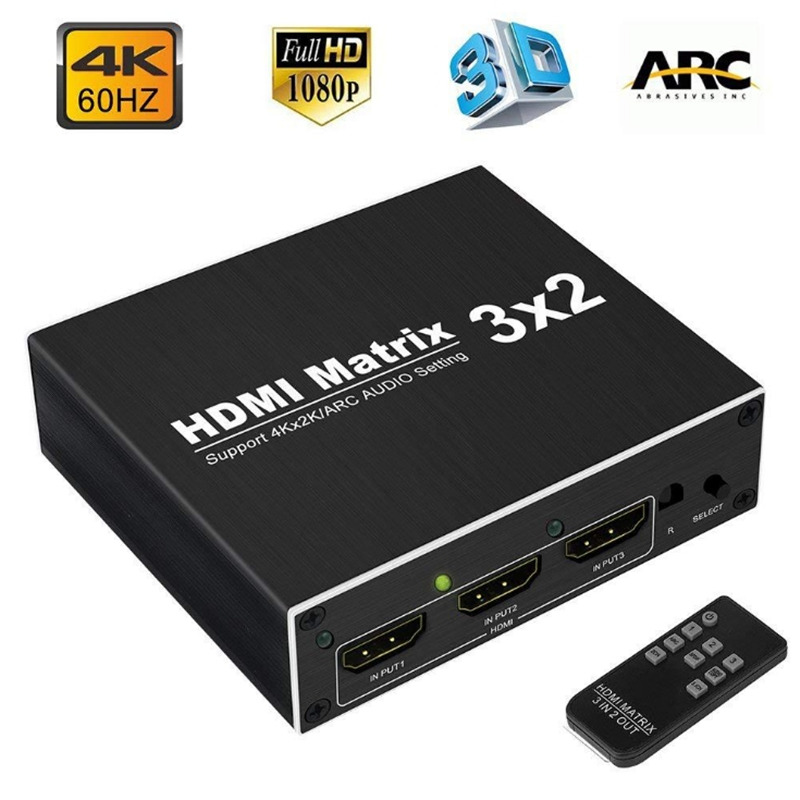

Product Introduction： This HDMI 3x2 matrix can distribute any one of 3sources to either of 2 displays, and can work as a splitter to show the same source on 2 displays simultaneously. It also supports SPDIF,coaxial and stereo headphone audio output（Only Out A interface support audio output）. The matrix allows 3 HD sources to be switched or split easily to 2 HDMI compatible displays or projectors.
Product Features： _Support HDMI 1.4b. _SupportARC. _Support 3D video format. _Support highest resolution up to 4096*2160/30Hz. _Support 3.2G data rate andTMDSclock up to 320Mhz. _Support deep color 8/10/12 bit. _When the resolution is 1080p and below,support AWG26 HDMI standard cable input up to 15 meters length ,output up to 25 meters length. _When the resolution is 4K ,support AWG26 HDMI standard cable input up to 12 meters length,output up to 15 meters length. _Support 3.5mm stereo audio output and optical output. _Support four HDMI input to be switched or split two HDMI output. _Support 5.1 audio channel. _ Support5V-12Vwidevoltageinput.
