Description:

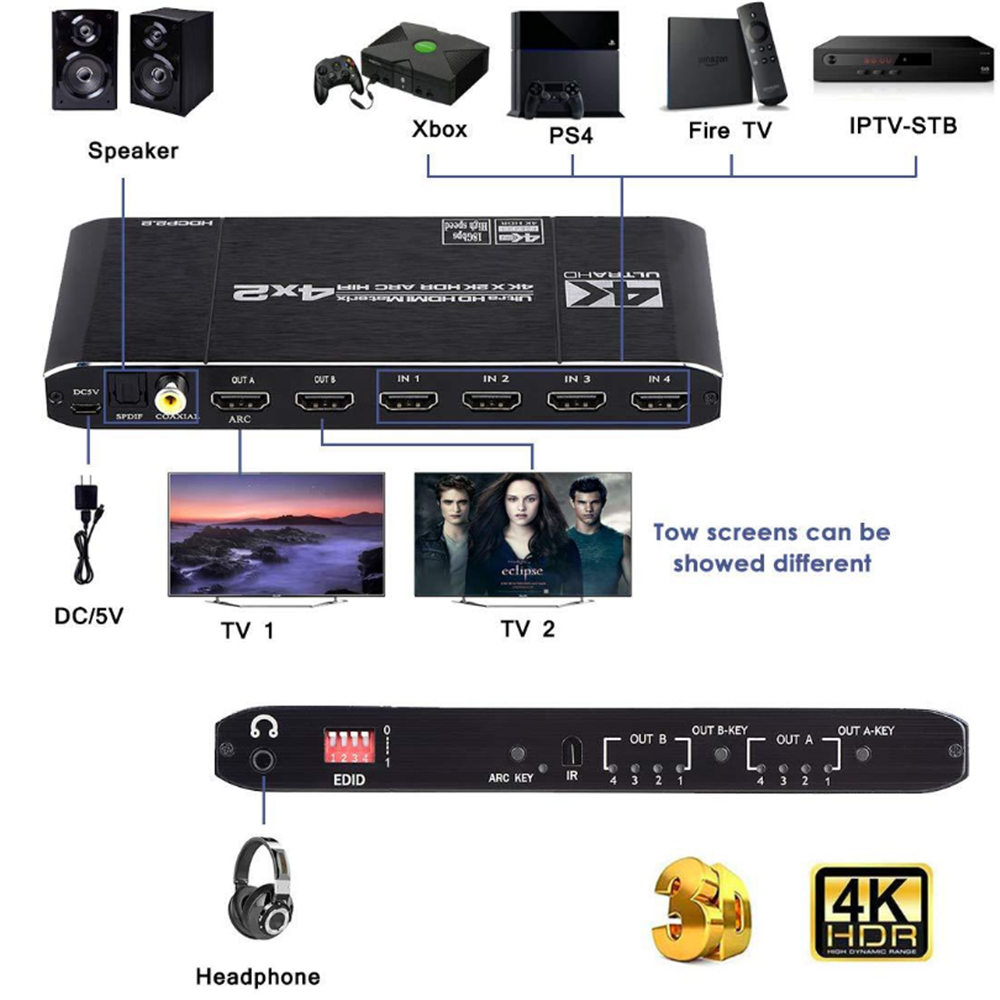

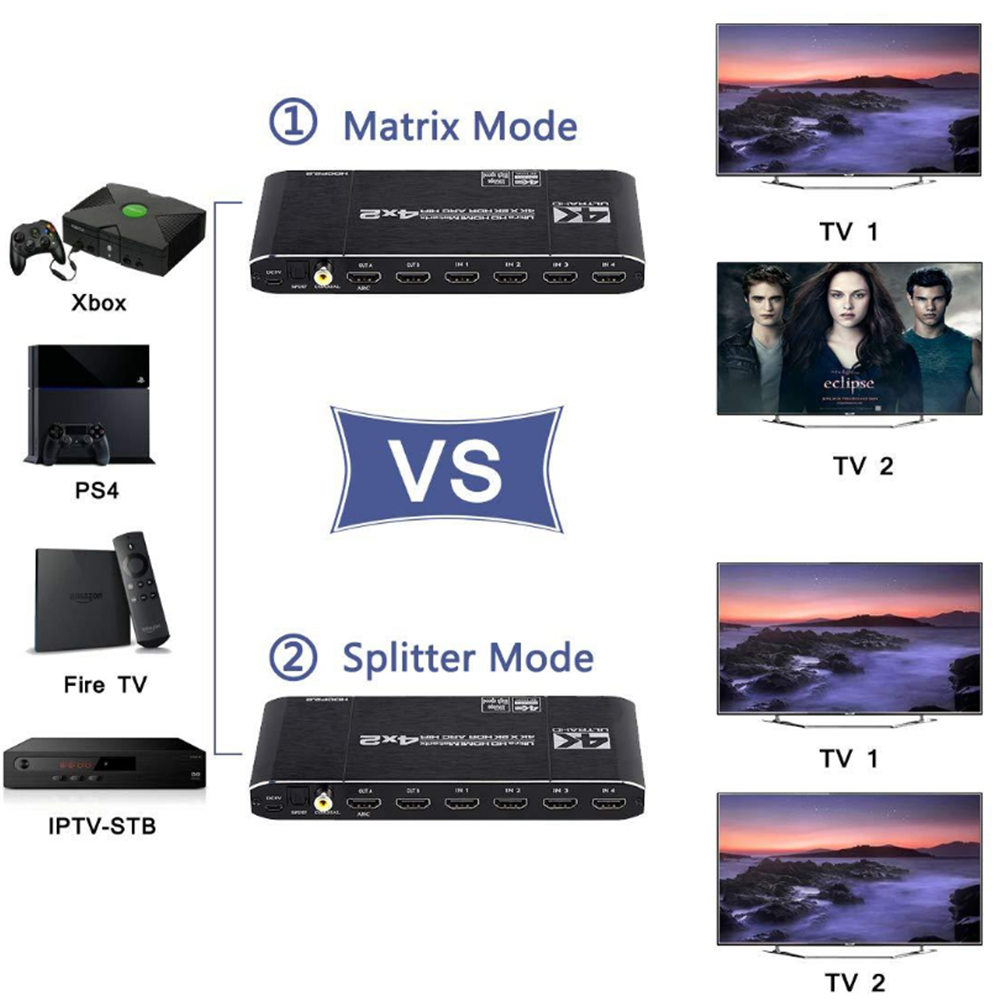

This 4K 4x2 HDMI Matrix allow users select any of the four HDMI signal sources to display on any two display devices. The maximum resolution reach up to 4K2K@60hz YUV4:4:4, supports HDMI ARC and audio extraction. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.

Specifications:
- Product Type:HDMI Splitter 1x4.
- Interface Type: 4 HDMI in, 2 HDMI out
- Color: Black
- Power Supply: DC 5V.
- Max working current: 600mA
- Operating Temperature range -15°C to+45°C
- Dimension (LxWxH): 170*56*24mm
- Weight: 175g

Features:
- Support HDMI 2.0b HDCP 2.2
- Support 3D video format
- Support highest resolution up to 3840*2160/60Hz
- Support 18.5Gbps 3 data rate and tmds clock up to 600Mhz
- Support deep color 8/10/12/24/32/48bit

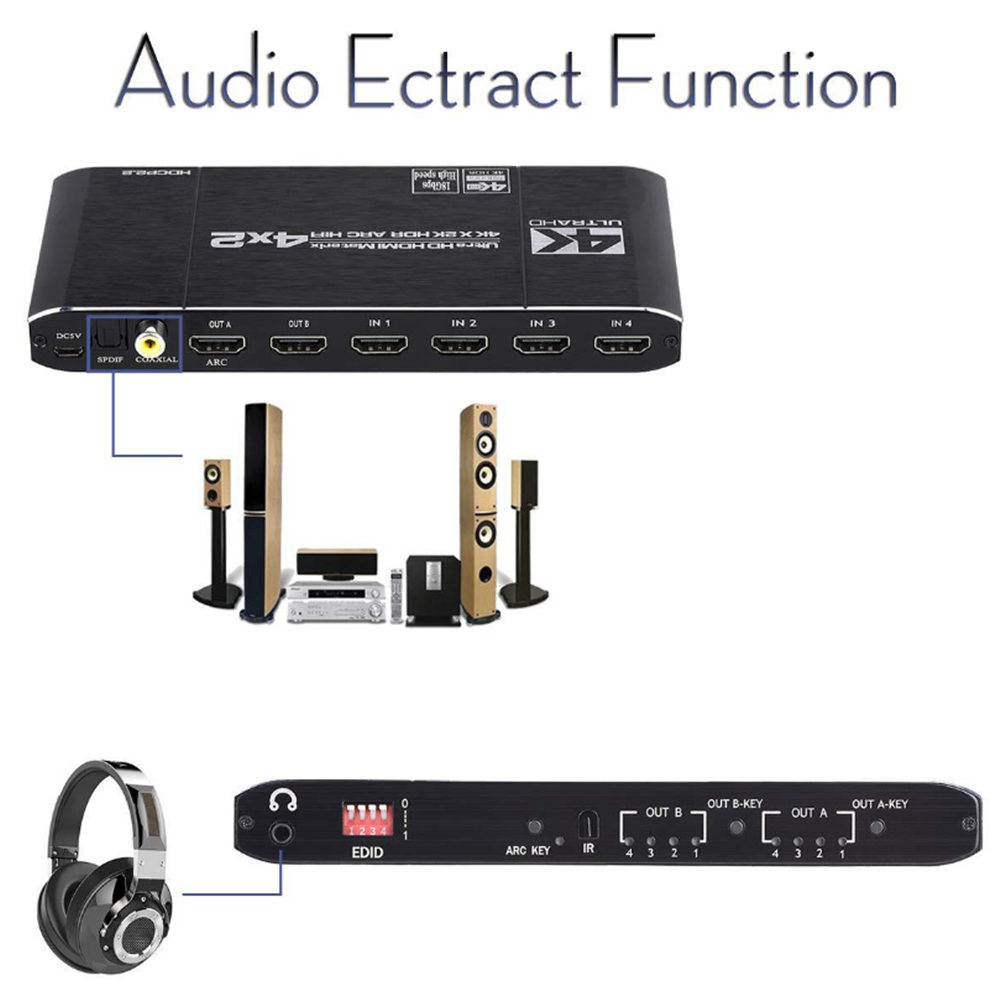

- Support HDMI audio outputs ,3.5 mm earphone jack and optical output at same time
- HDMI resolution: up to 3840*2160/60 Hz, RGB 4:4:4

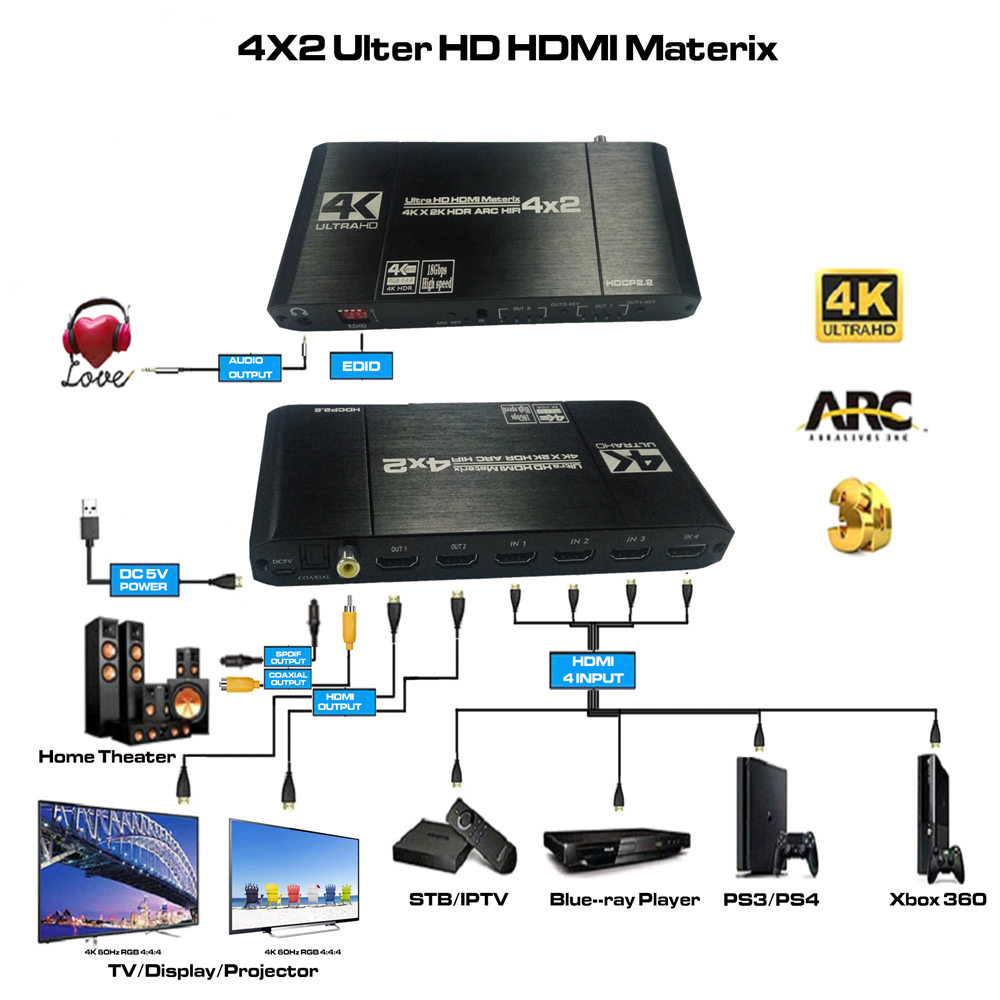

- 4 HDMI inputs switch and split to 2 HDMI displays
- Support LPCM/Dolby/DTS 5 1 audio

Note:

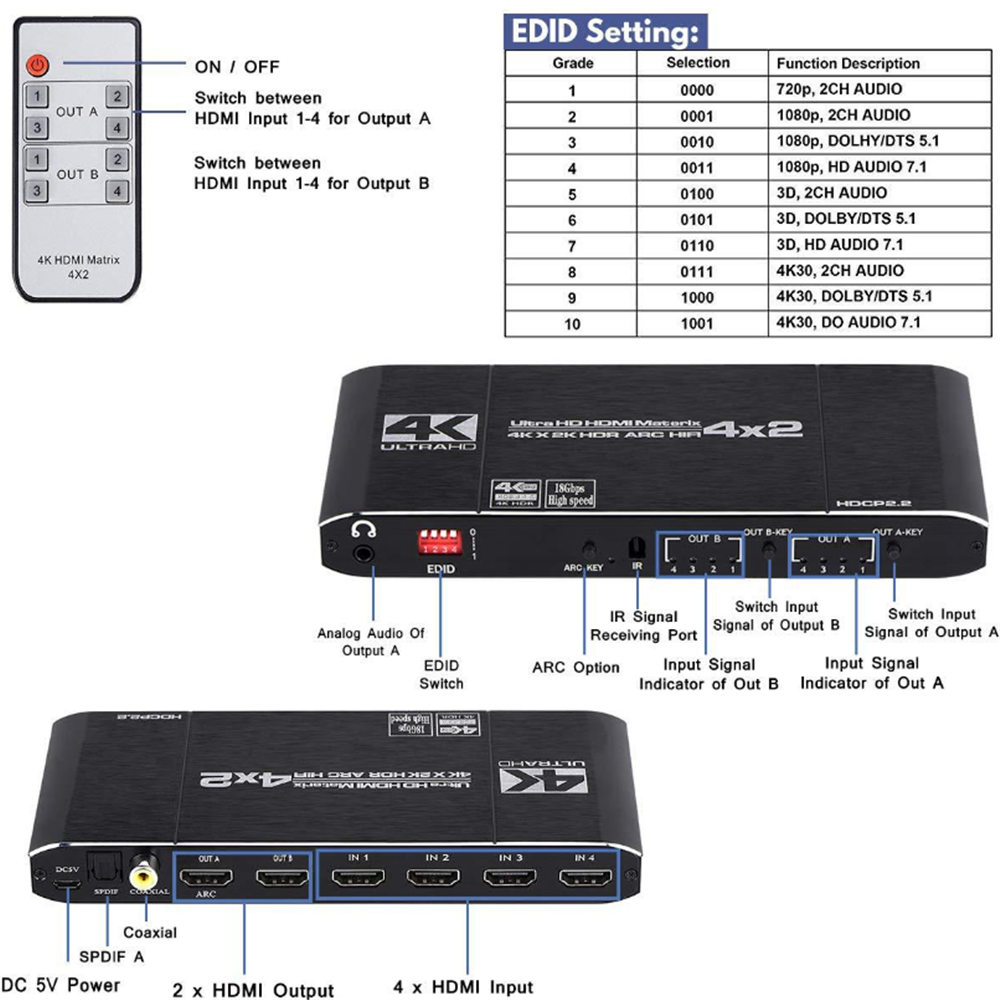

EDID the dial switch to dial downward is 1, dial upward is 0.
1. The Remote Control instruction:
(1) The four buttons on OUT A is the corresponding input source IN1-IN4from OUT AJN1-IN4 can be switched freely.
(2) The four buttons on OUT B is the corresponding input source IN1-IN4 from OUT B, IN1-IN4 can be switched freely.
2. Instruction of Buttons and LED:
(1) Instruction of LED: W1-IN4 indicator is the corresponding input sources out from OUT A or OUT B,

(2) Operation of Buttons: SWITCH A or SWITCH B is used to switch the corresponding inpul source out from OUT A or OUT B.

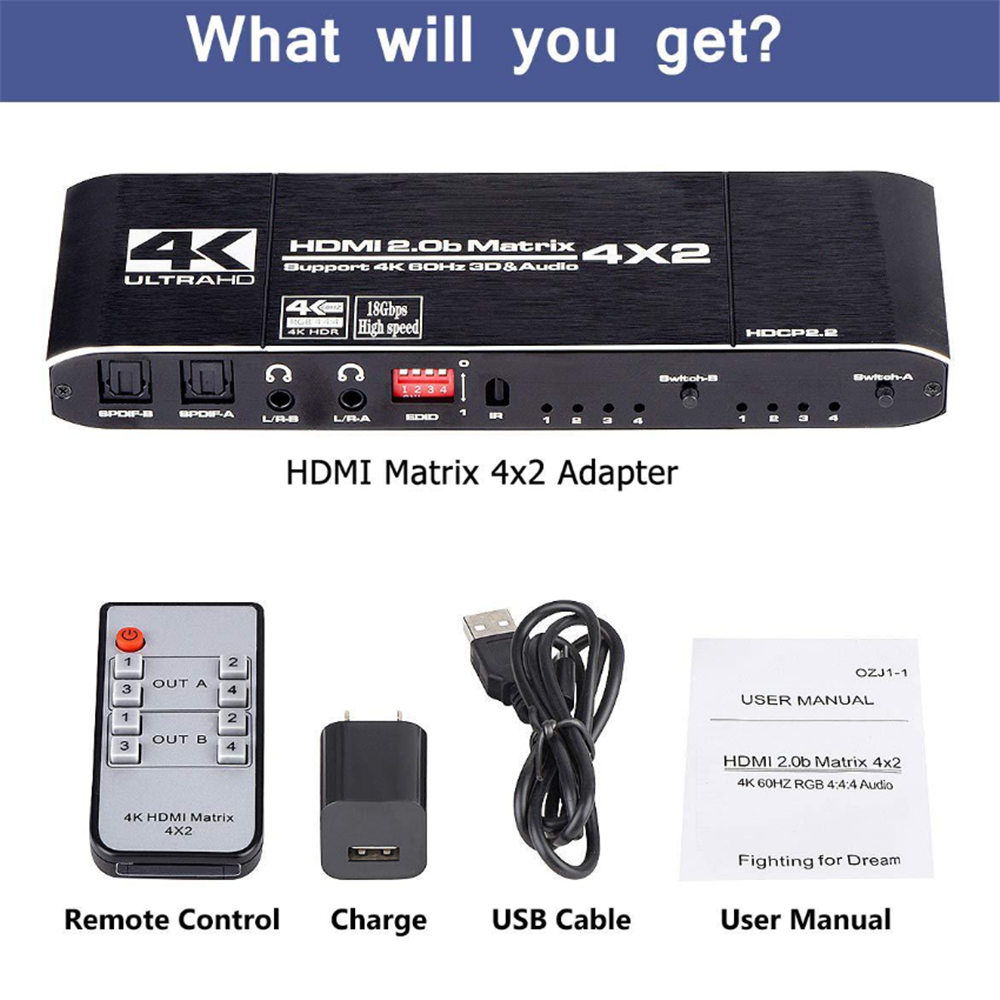

Package Contents:
1 * HDMI Matrix 4x2
1 * IR remote control
1 * Power Adapter（3 Pin）
1 * User Manual
1 * Box packaging
