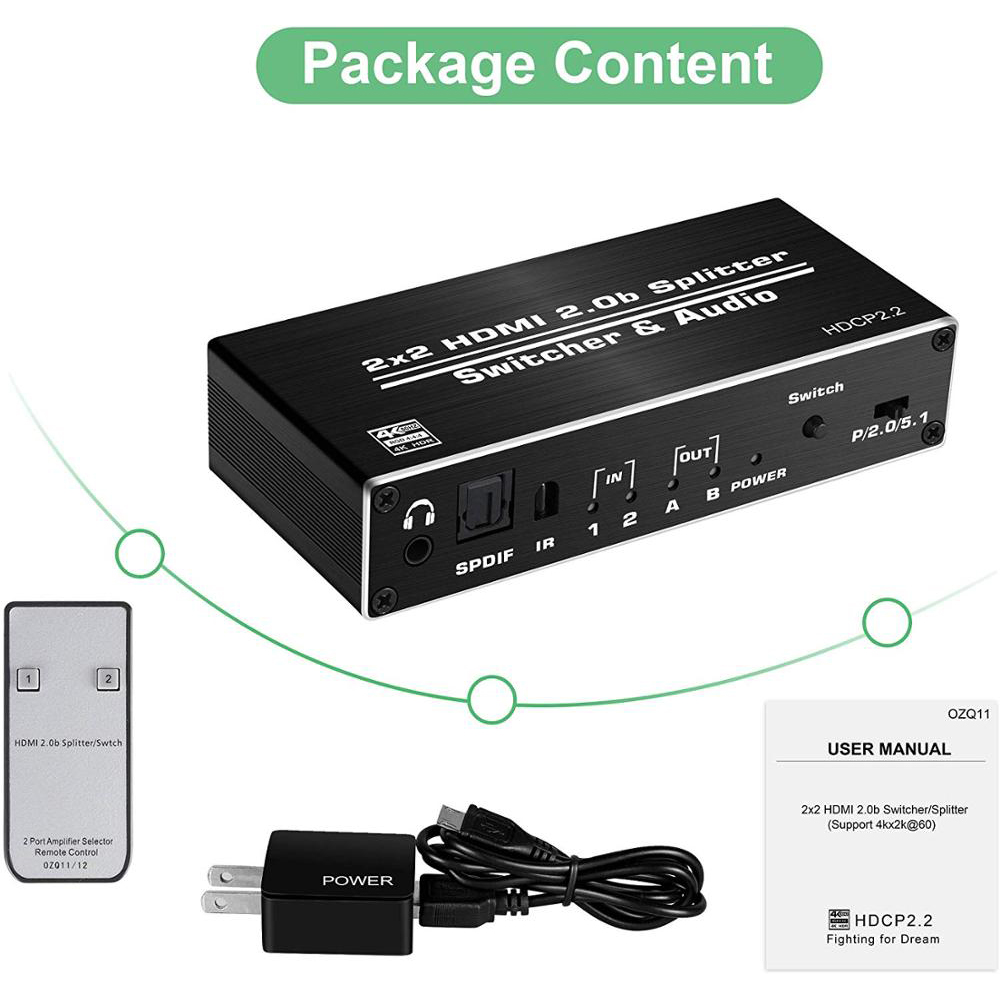

Package Contents:

1 * HDMI Switch splitter 2x2

1 * Remote

1 * Power Adapter（3 Pin）

1 * User Manual

1 * Box packaging

Description:

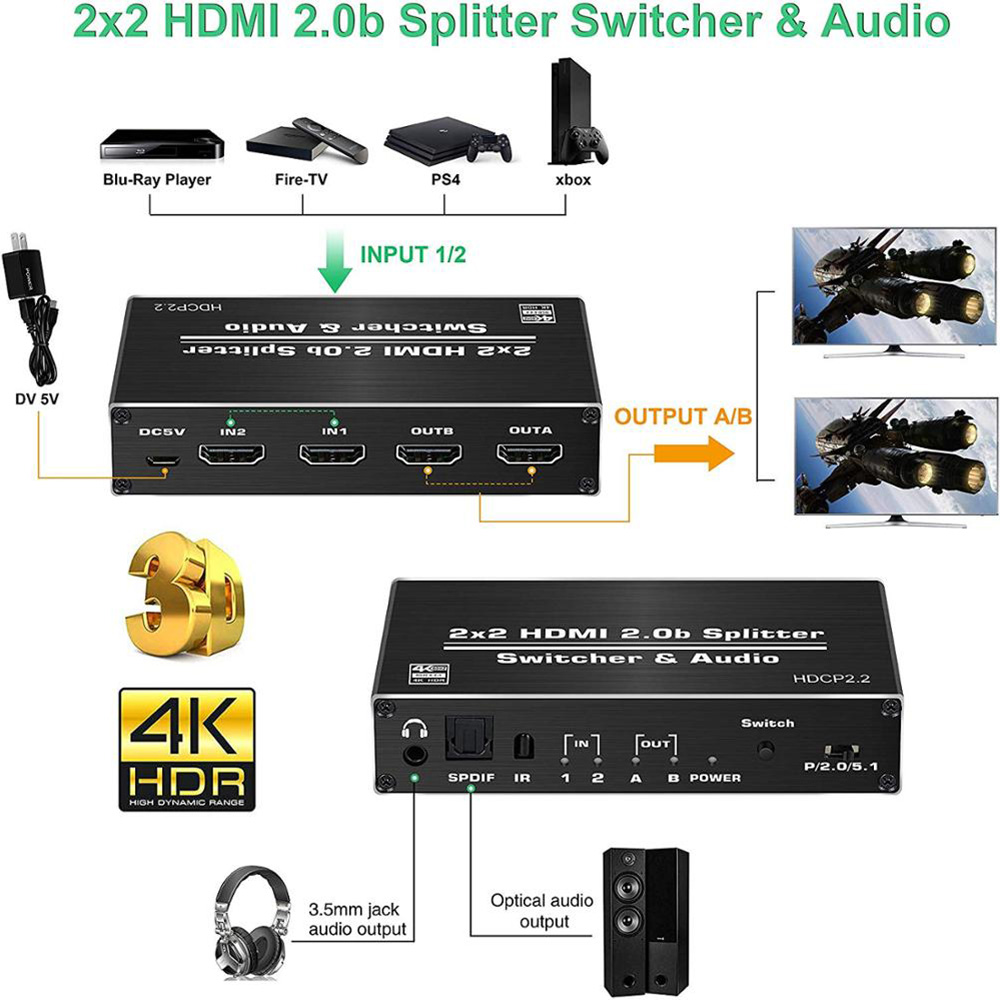

This HDMI Switch support 2 HDMI Inputs to 2 HDMI Output, can be applied for connection, signal

amplification, multi-picture conversion and for selection between computer/PC, STB/Smart Box, DVD Player, Blue-ray Player, PS3/PS4 Pro and LCD TV,LCD,Projector, as well as an Audio/Video receiver. The excellent quality allows you to experience the fun brought by the infusion of science and technology into life

Features:

1. Support HDMI 2.0/HDCP2.2

2. Support highest resolution up to 3840*2160/60Hz,3D

3. Support deep color 8/10/12 bit

4. Support video format:8/10/12 bit deep color

5. Support 3.5mm earphone jack and optical audio output

6. Support audio format:DTS-HD/Dolby-TrueHD/DTS/Dolby-AC3/DSD/LPCM,can not support DTS7.1.

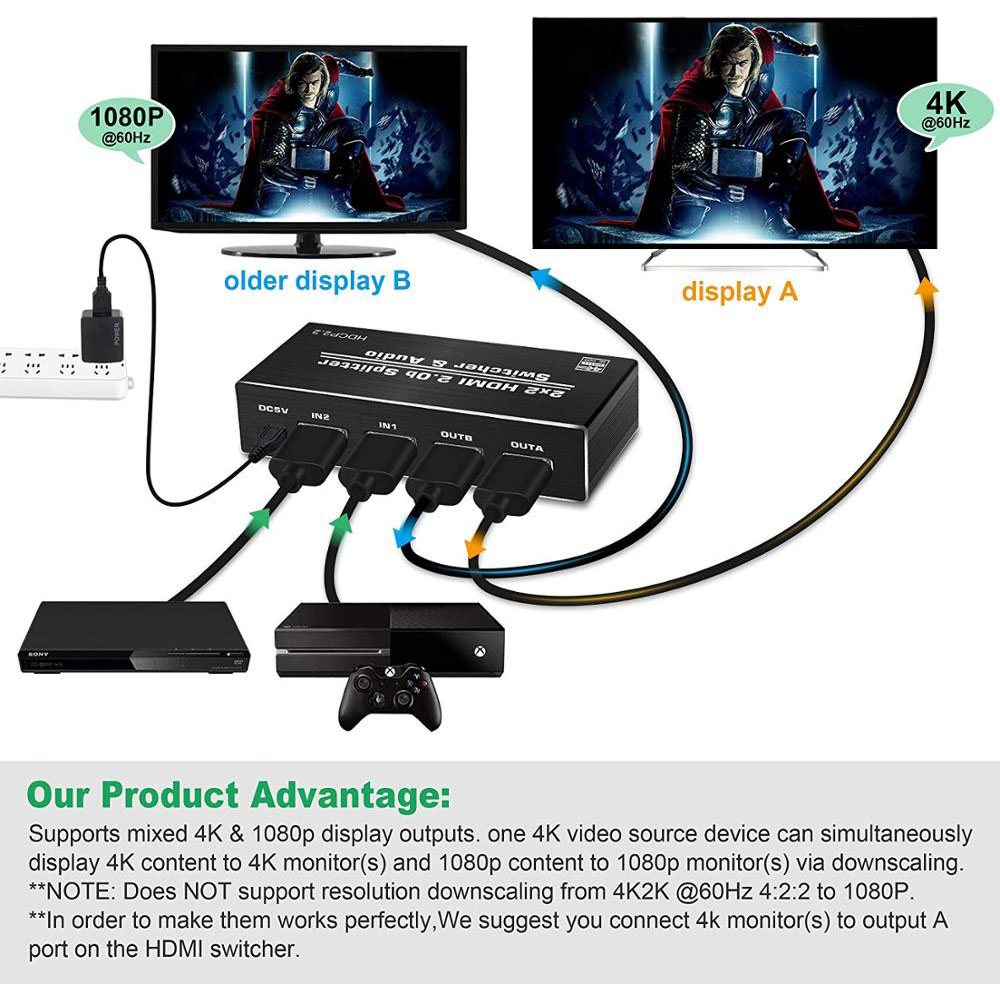

7. Supports mixed 4K & 1080p display outputs

one 4K video source device can simultaneously display 4K content to 4K monitor(s) and 1080p content to 1080p monitor(s) via downscaling. **NOTE: Does NOT support resolution downscaling from 4K2K @60Hz 4:2:2 to 1080P. **

8. Max bandwidth :600MHz

9. Max baud rate :6 Gbps

10. Input cable distance: 4k≤10m HDMI 2.0 standard cable

11. Output cable distance:4k≤10m HDMI 2.0 standard cable

Tips: In order to make them works more perfectly,We suggest you connect 4k monitor(s) to output A port on the HDMI switcher.

Important Notes:

1.If you want to use the HDR, your HDMI input and output devices must be support HDR

2.Choose optical audio out, you can enjoy 5.1CH or 2CH or audio copy.Choose 3.5mm audio out, you can enjoy 2CH or audio copy.

3.If your HDMI Source Device (like XBox, PS4) supports 4K, please use a HDMI 2.0 cable to connect 4K HDMI Source Device & HDMI switch & display, since HDMI 1.4 cable (or below HDMI 1.4) isn't enough to support the resolution of 4K (4096*2160).
