Package Contents:

1 * HDMI Splitter 1x2

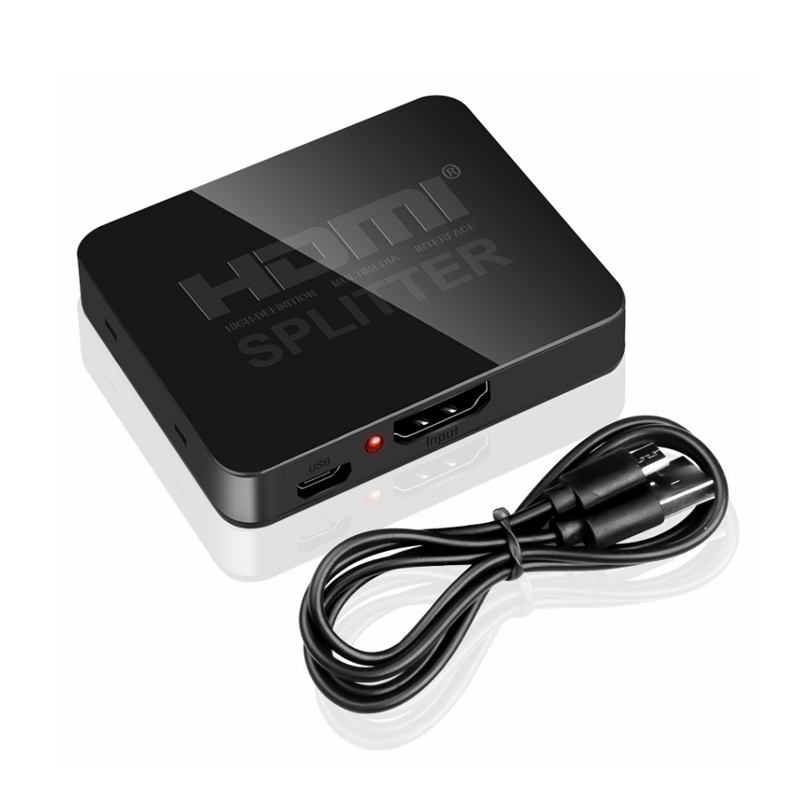

1 * USB Power Cable

1 * User Manual

1 * Box packaging

Description:

The HDMI Splitter 1x2 offers HD video solution for supermarkets, shopping malls, HDTVs, STB, DVDs, projector factories, data control centers, information distribution, conference rooms presentation, education and training, corporation showrooms, home theaters and more.

Features:

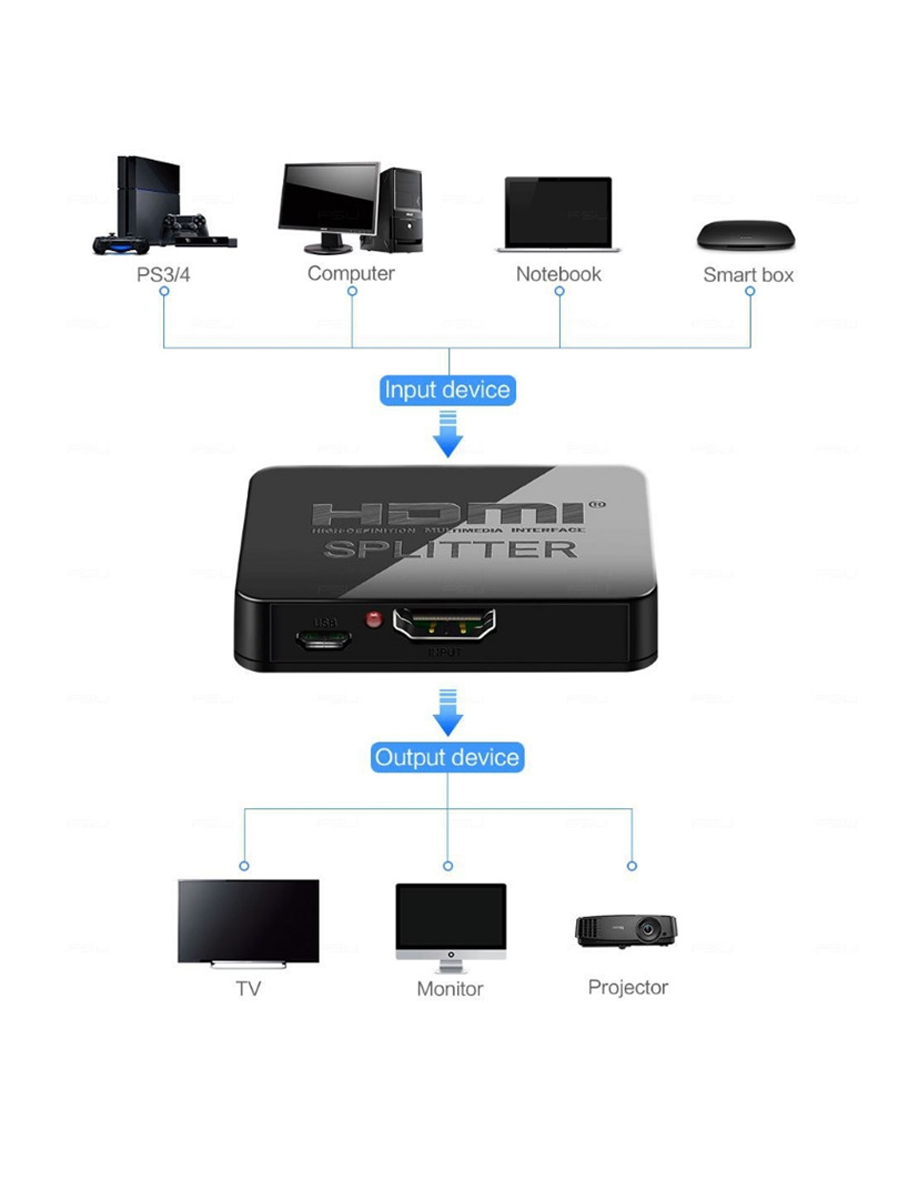

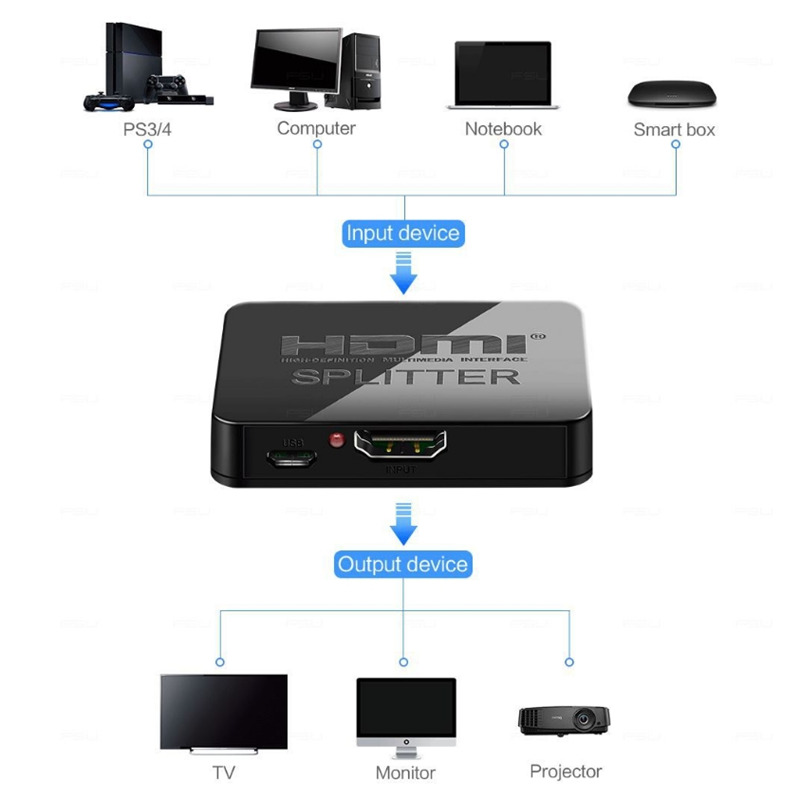

One HDMI input signal split to two HDMI sink devices

Support Full HD, Full 3D

Support up to 1080P/60Hz

Support CEC

Support deep color 30bit, 36bit

Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC

Digital audio format, as DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD/HD(HBR)

Support signal retiming

Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length

No loss of quality

SPECIFICATIONS:

Support HDMI version: HDMI1.3

Support HDCP version: HDCP1.2

HDMI resolution:UP TO 1920*1080/60Hz (480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz、1080P 24Hz 3D、720 60Hz 3D  3840X2160P)

Support video color format:24bit/deep color 30bit,36bit

Support audio format:DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth:225MHz

Max baud rate:2.25Gbps

Input/Output TMDS signal:0.5~1.5Volts p-p(TTL)

Input/Output DDC signal:5Volts p-p (TTL)

Input cable distance:15m AWG26 HDMI standard cable

Output cable distance:20m AWG26 HDMI standard cable

Max working current:350mA

Operating Temperature range:(-15 to +55)

Operating Humidity range:5 to 90%RH (No Condensation)

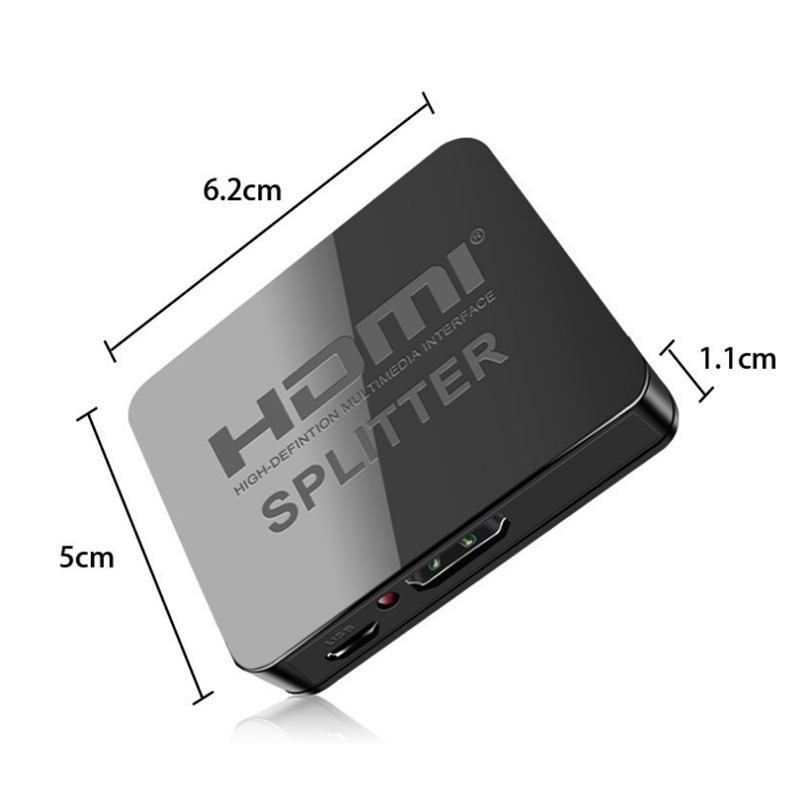

Dimension (L x W x H):62x50x11mm
