Package
Contents:
1
* HDMI Splitter 1x2
1
* DC 5V/1A Power Adapter（3 Pin）
1
* User Manual
1
* Box packaging
Description:
This

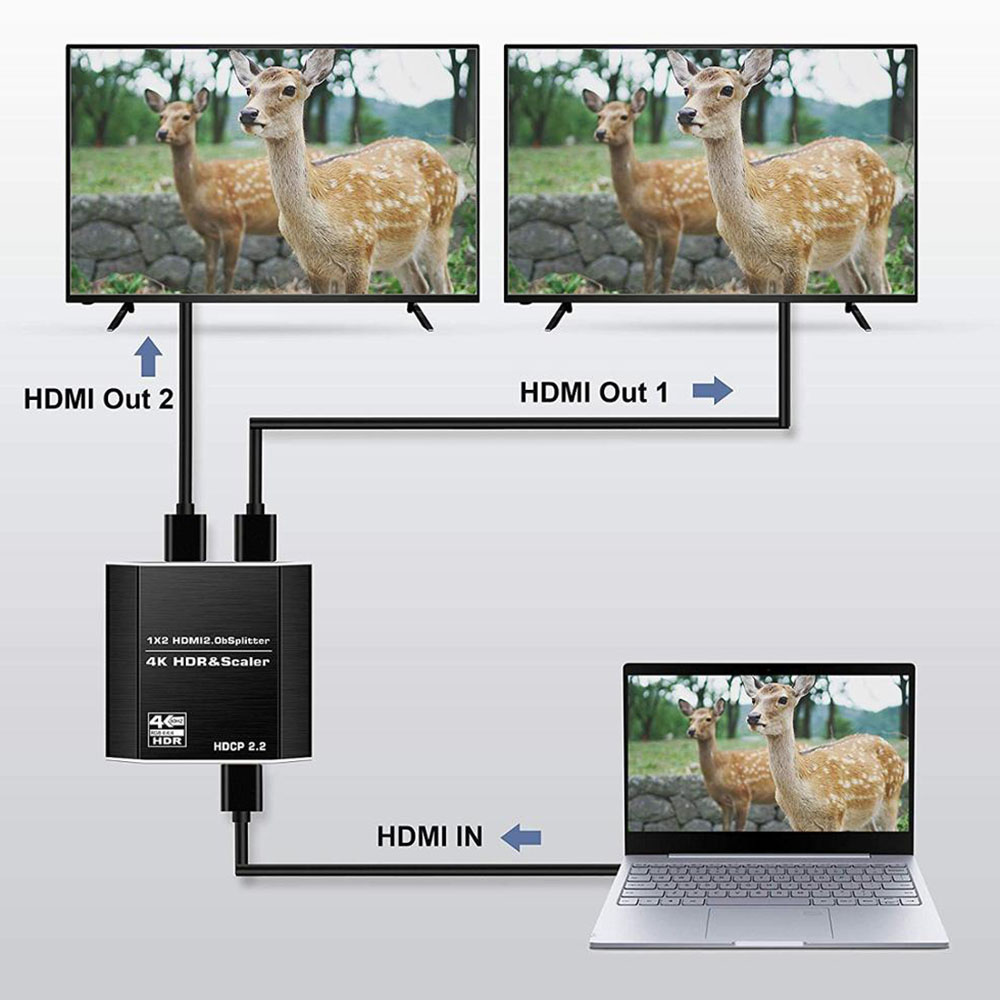

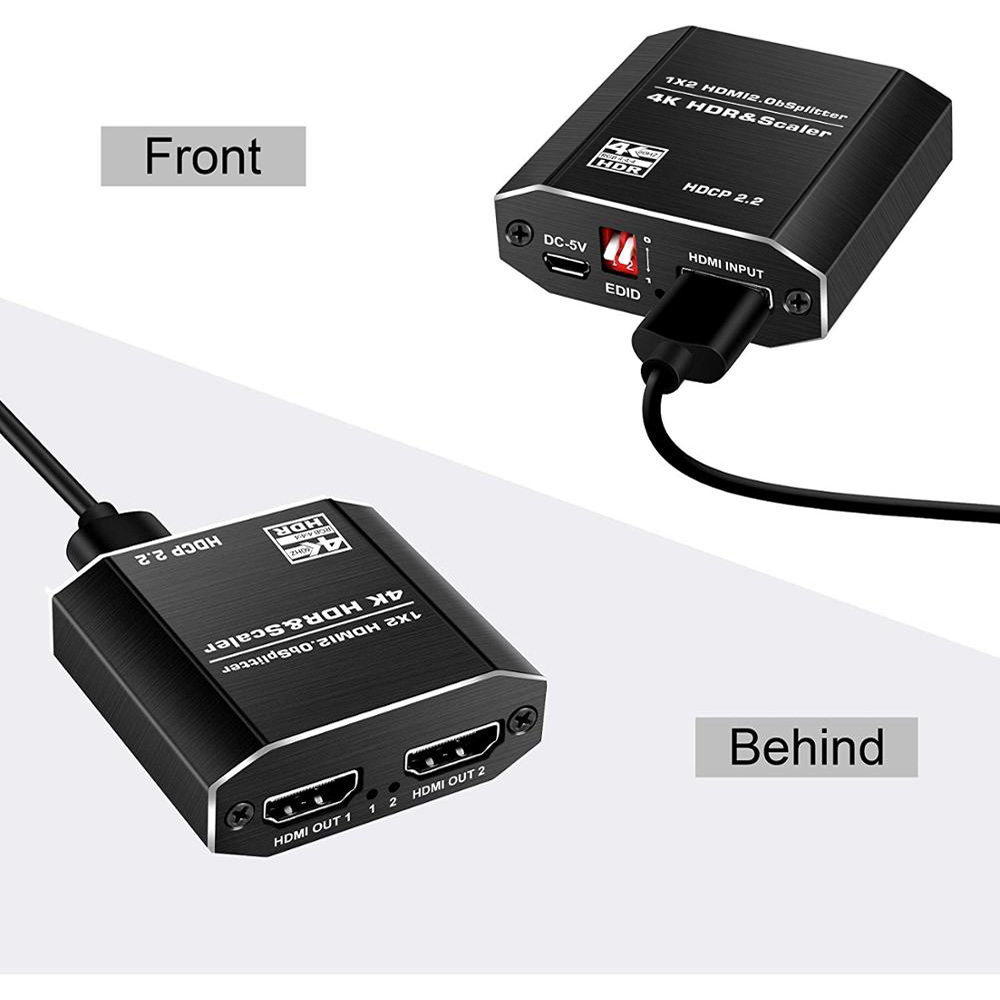

HDMI Splitter 1 in 2 Out supports Mirror & Extend function. Press Windows +
P can choose these two modes. In Mirror Mode the computer monitor duplicates
the monitor on the external display so that you see the same picture on both
the desktop and display. In Extend Mode the external display is treated as a
separate screen so that you can have a different windows open on the display
and a desktop.(Note:Both monitors in both modes display the same pictures.)

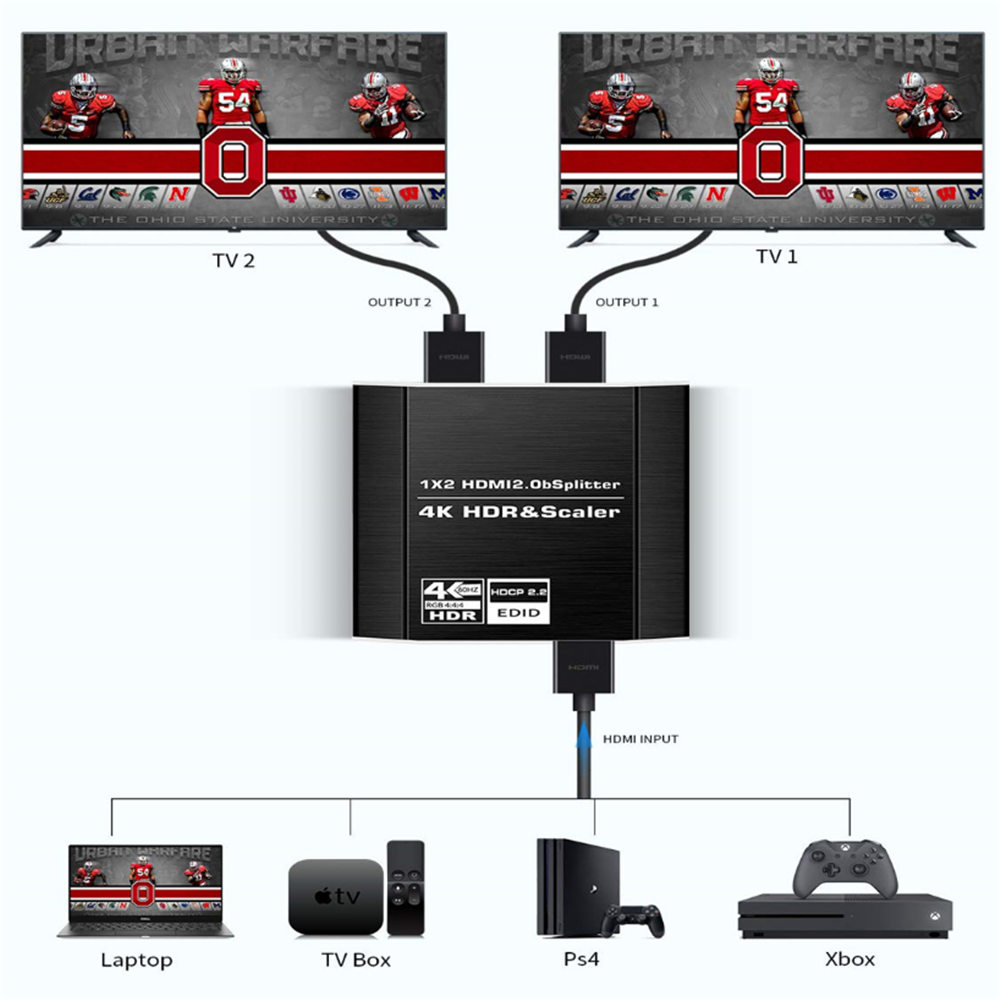

Compatibility: Using the latest HDMI splitter chip, this 4k HDMI splitter 1 in
2 out is compatible with most devices with standard HDMI interface, inlcuding:
Apple TV, XBox, PS3, PS4, PS4 Pro, Fire TV Stick, Blu-Ray DVD player, Satellite
Receiver, Roku Stick, PC, Laptop, HD camera and etc.
Features:
1.
Support 3D video format
2.
HDR 4K*2K
3.
HDMI 2.0 HDCP2.2
4.
RGB Format
5.
EDID Function
Specifications:
HDMI
version：HDMI 2.0
HDMI
resolution：up to 3840x2160P/60Hz
Support
video color format：30/36/48 bit deep color
Support
audio format：DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD HD(HBR)
Max
bandwidth：1536MHz
Max
baud rate：18Gbps
Input
cable distance：≤5m AWG26 HDMI standard cable
Output
cable distance：≤5m AWG26 HDMI standard cable
Max
working current：1200mA
Power
Adapter output: DC5V/1A

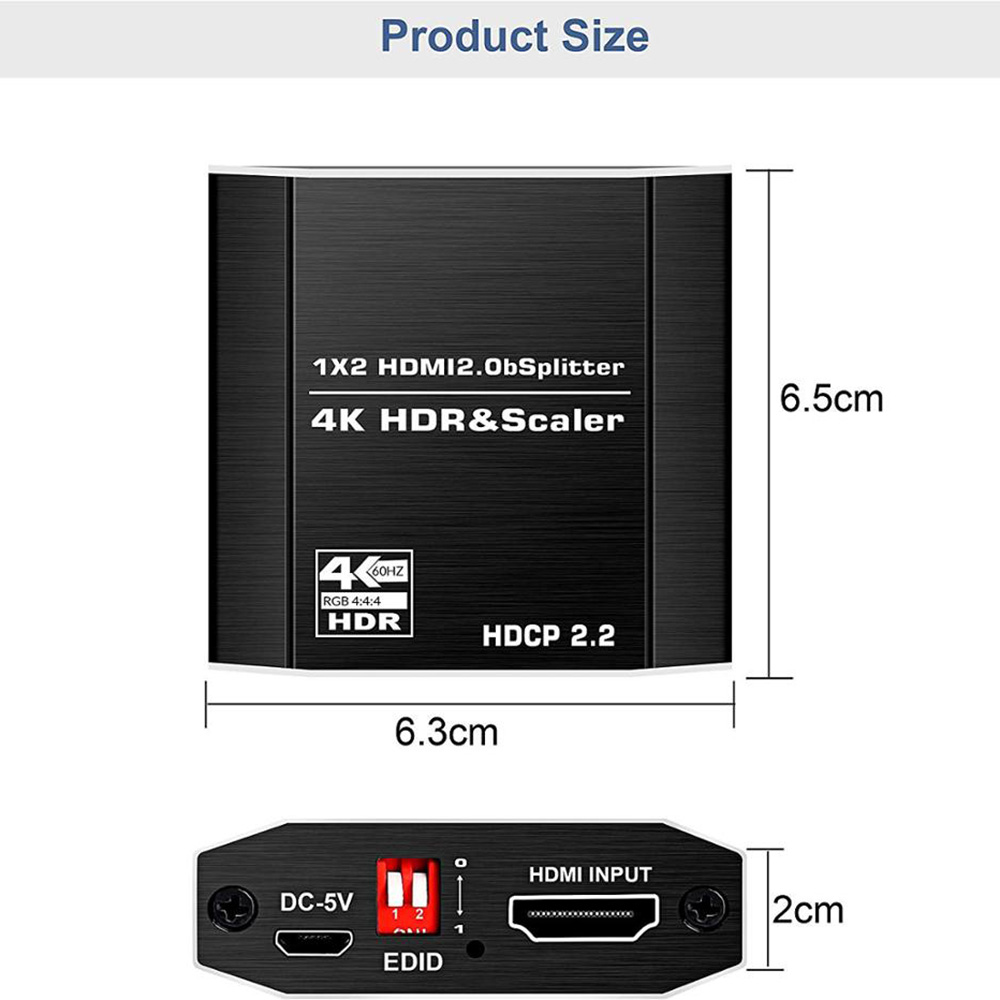

Dimension
(L x W x H)：58x49x11mm
Weight：130g
【4K@60HZ Ultra HD Picture】 The 4K HDMI splitter supports HDCP2.2, HDMI2.0b, 3D, RGB
4:4:4, HDR Ultra HD Max Resolution 4k@60Hz, 480p/576p/720p/1080P/2160P. Thanks
to the unique design, it can make one 4K@60Hz output, one 1080P output at the
same time.
【High Quality Dolby Atmos
Audio Support】 The HDMI 2.0 splitter supports the Dolby
Atmos/DTS-HD/Dolby-TrueHD/LPCM7.1/ DTS/Dolby-AC3/ DSD. Connect the output1 with
your TV and output2 with your Soundbar to build an extraordinary Dolby Atmos
home theater!

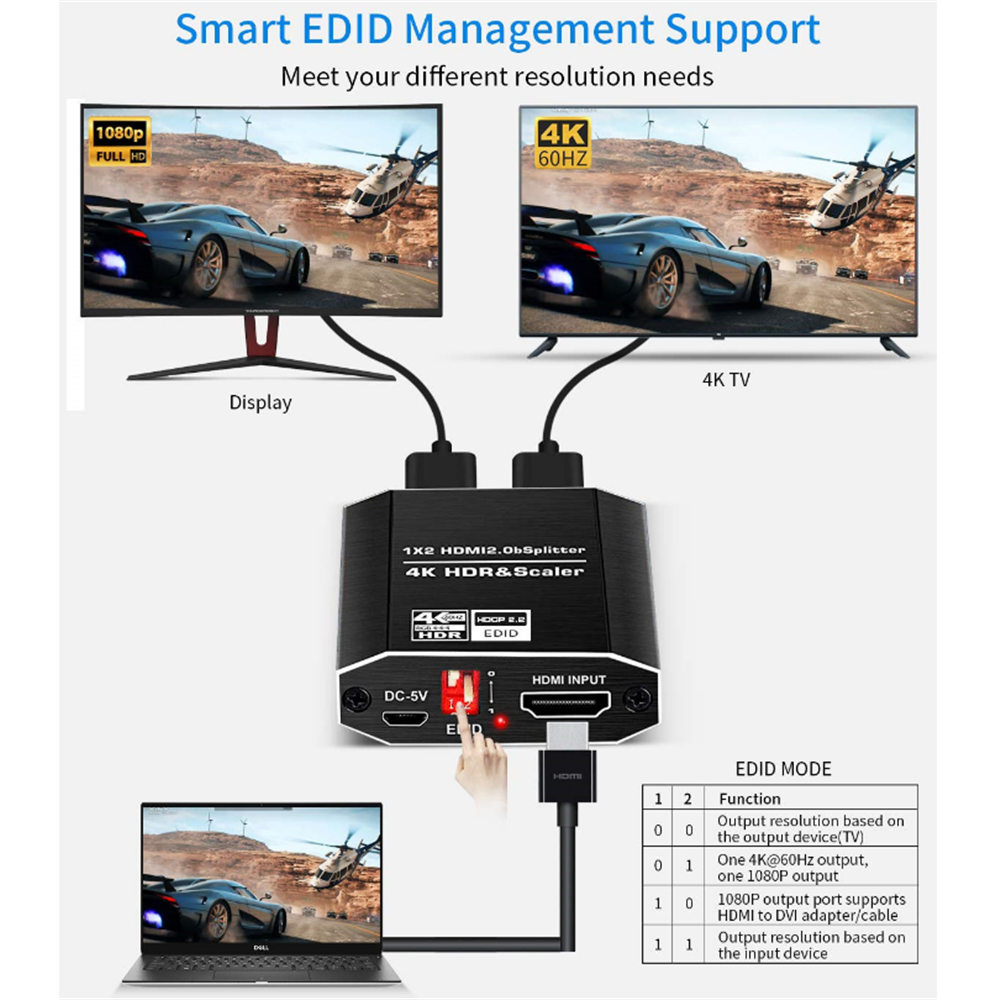

【Smart EDID Management】 Smart output adjust the resolution based on your input and
output devices intelligently to meet your needs, like 1080p output on your
display and one 4k output on your TV at the same time.
