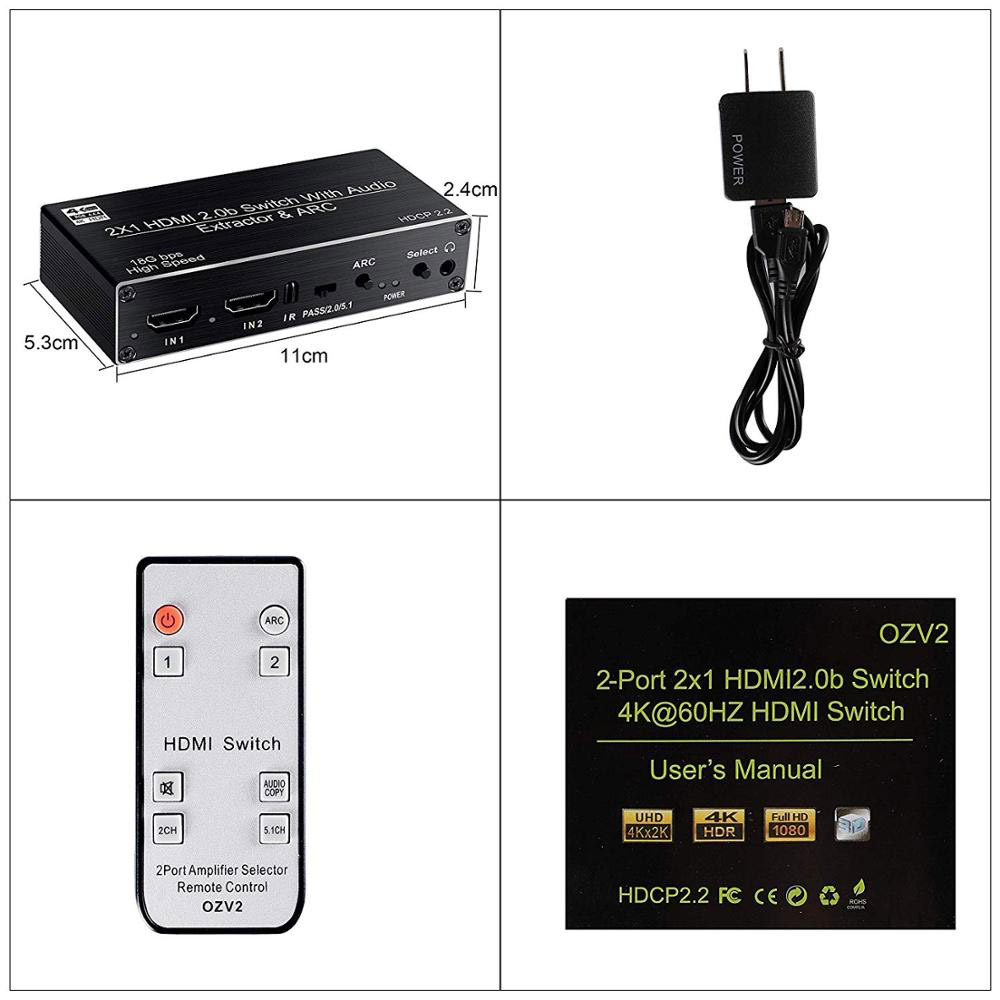

Package
Contents:
1
* HDMI Switch 2x1
1
* User Manual
1
* Remote
1
* Power adapter 5V/1A(3 Pin)
1
* Box packaging
Description:

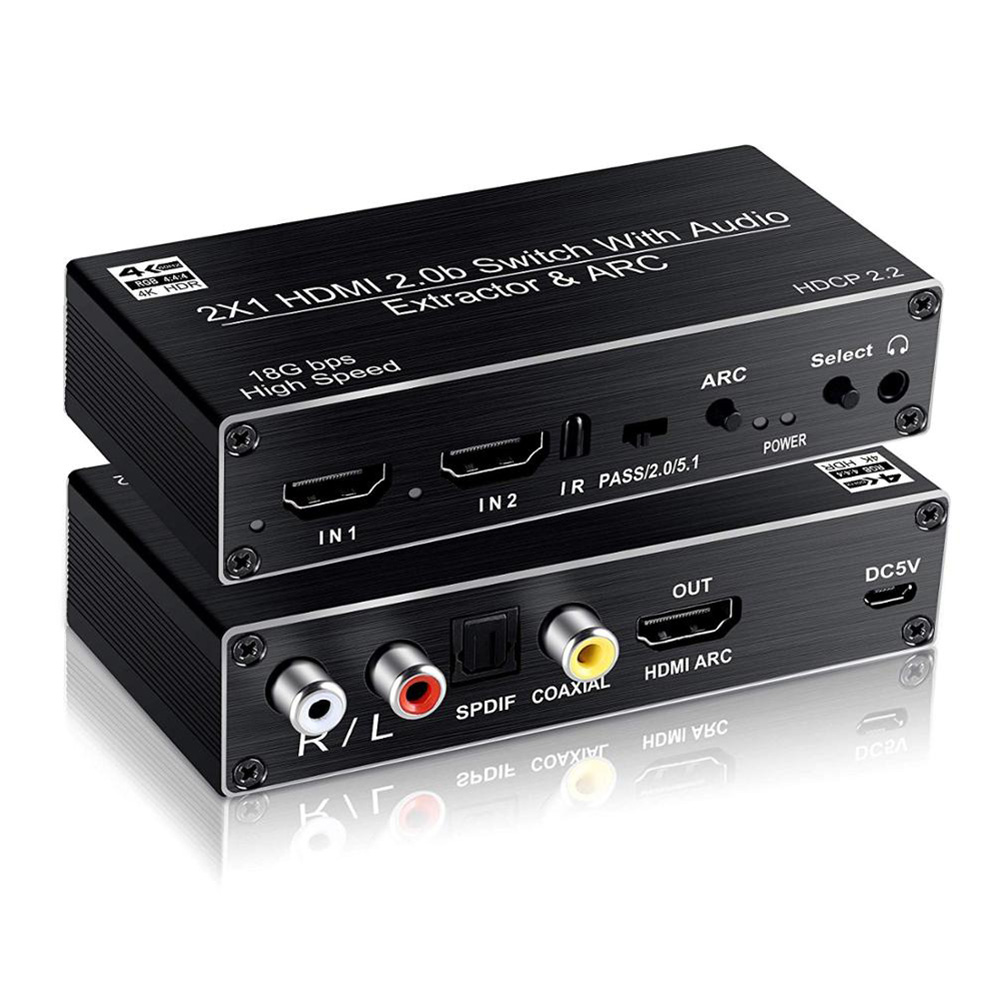

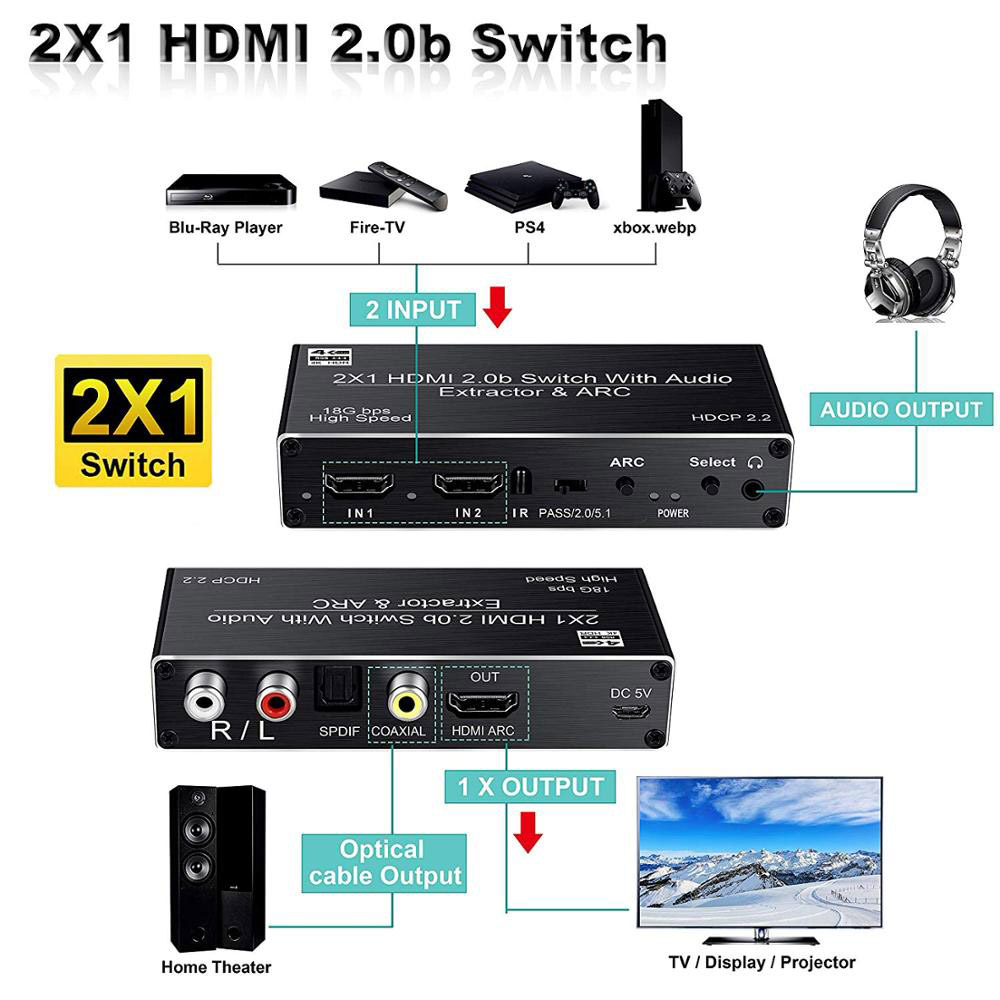

This
HDMI Switcher allows you to switch easily among two HD sources to one HD
display. Also, it can extract digital audio embedded in HDMI and output it via
optical SPDIF and RCA L/R stereo and Coaxial audio out, It also support ARC
(Audio Return Channel)
Feature:

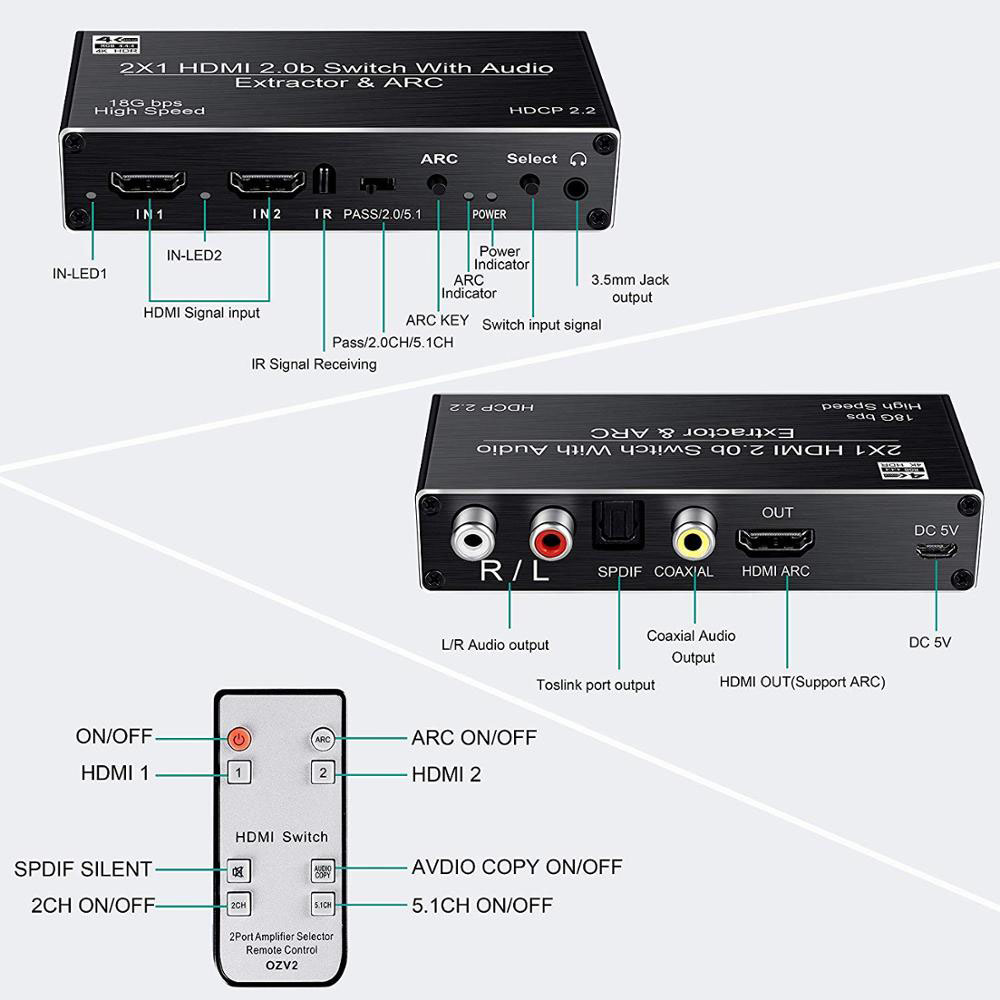

1.There
are 2 ports HDMI input,1 port HDMI output with ARC function, Toslink output,
Coaxial Output, L/R output, 3.5mm Jack output.

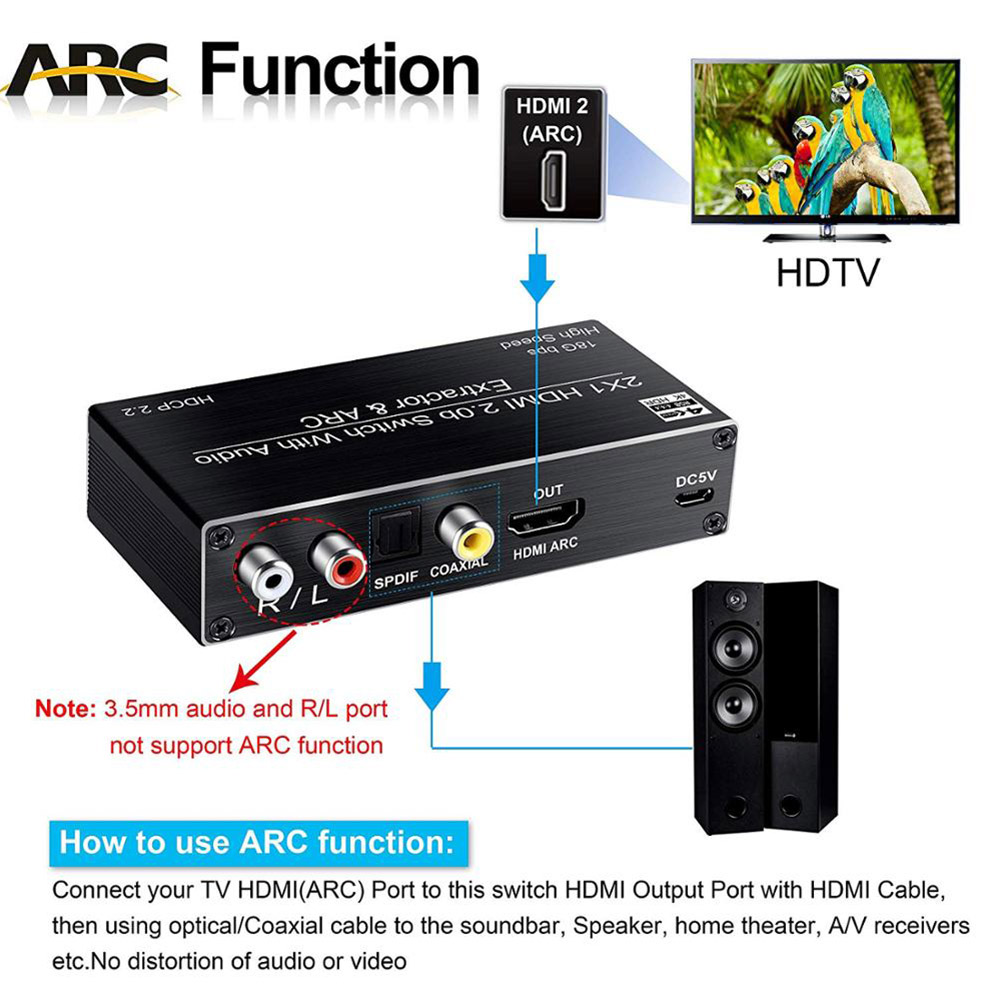

2.Coaxial
and Toslink port output support audio return function (ARC)
3.3.5mm
Jack port output and R/L support audio extract function ,it does not support
ARC
4.support
480i/480p/576i/576p/720p@50/60Hz/1080p@50/60Hz/4Kx2K@20/30Hz with 24bit
RGB/YcbCR 4:4:4/YcbCR 4:2:2.
5.Max.bandwidth
per channel: 600MHz. Max. baud rate per display: 18.2Gbps
6.Compliant
with HDMI2.0 ,HDCP1.4 /1.3 /1.2/1.1 HDCP2.2
7.Audio
Supports LPCM 7.1CH,Dolby TrueHD,and DTS-HD Master Audio
8.Supports
Dolby True-HD, DTS-HD, AC3, DTS, DSD. This HDMI Switch will output the Dolby
True-HD, DTS-HD, AC3, DTS, DSD audio format, But can't decode these audio
formats.
9.Support
HDR 2K HDR10 Wide Applicability: Compatible with any HDMI devices such as
Nintendo Switch, PS4 Pro, Xbox 360, Xbox One X,PS3, Beamer, DVB Receivers,
Blu-ray Player, Apple TV 4, Laptop and HDTV/HD Monitor etc.
Notes:
1.lt
supports coaxial cable and Optical cable are up to 10meters(max)
2.Maximum
remote control distance is 8meters. 3.HDMI input and output hdmi 2.0 cables can
reach up to 3 meters if your Resoltion up to 4K@60HZ; can reach up to 5 meters
if your Resoltion up to 4K@30HZ.
