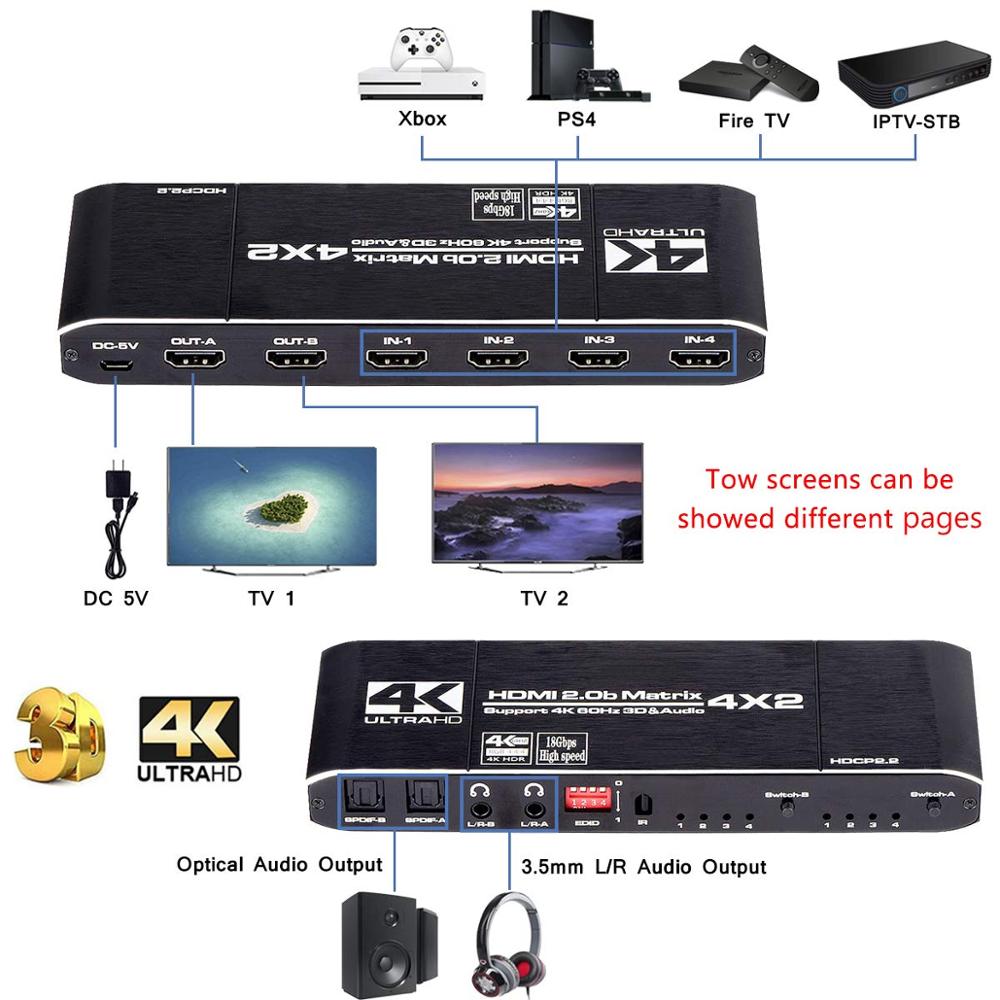

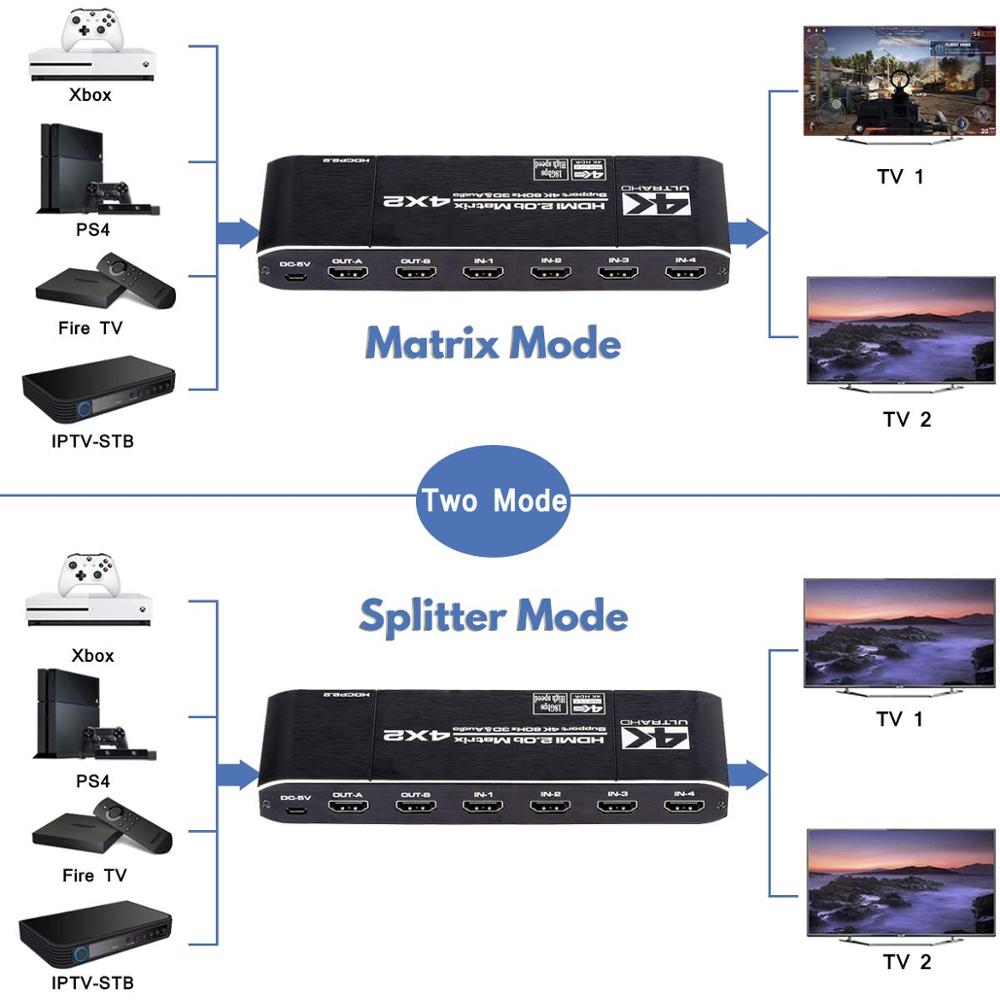

Description: The HDMI matrix 4x2 can connect 4 HD signal sources to 2 HD display terminals with optical fiber or stereo headphone output. The matrix allows four HDMI devices to be switched easily to 2 HDMI compatible monitors or projectors. And any output ports can realize independent audio output by optical fiber or stereo headphone. Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training enviroments.

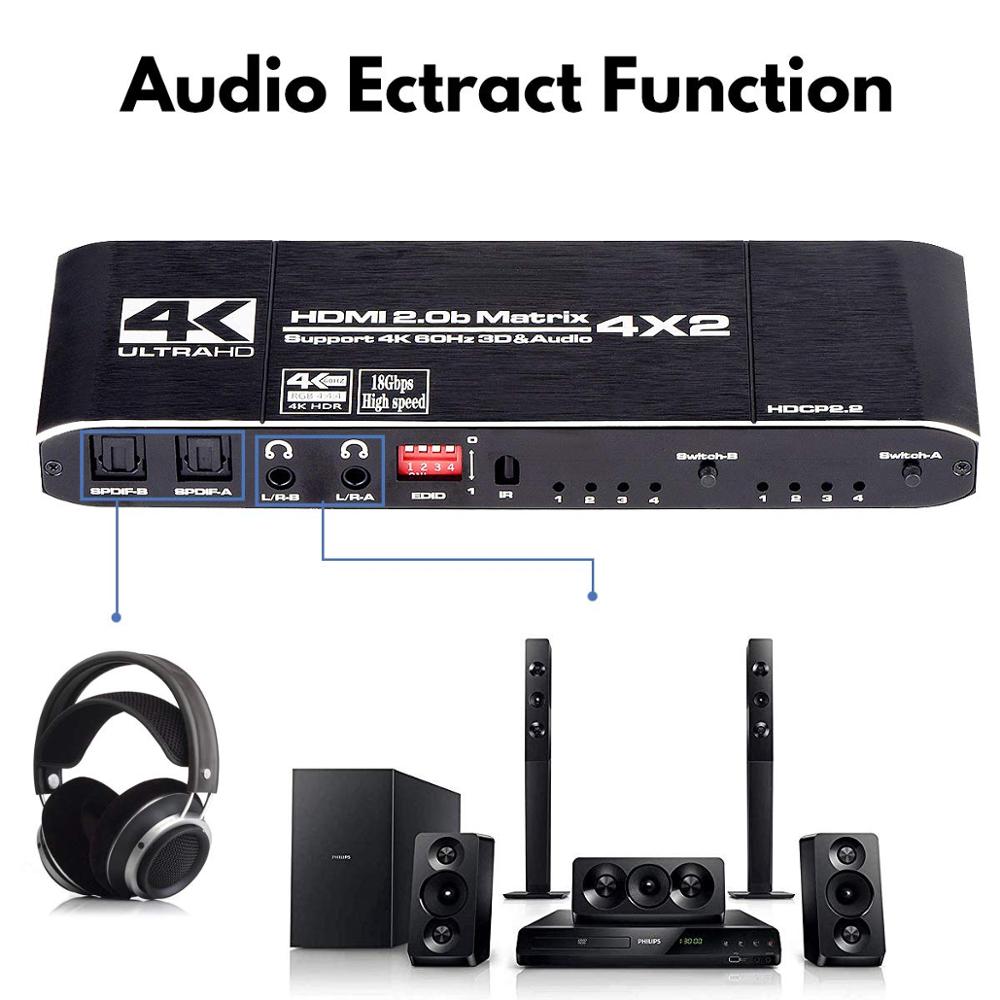

Features: 1. Support HDMI2.0b HDCP2.2 2. Support 3D video format 3. Support highest resolution up to 3840x2160P/60Hz 4. Support 18.5Gbpsx3 data rate and tmds clock up to 600Mhz 5. Support deep color 8/10/12/24/32/48 bits deep color. 6. Support HDMI audio outputs, 3.5mm earphone jack and optical output at same time 7. 4 HDMI inputs switch and split to 2 HDMI displays 8. Support LPCM/Dolby/DTS 5.1 audio
Specifications: HDMI version：HDMI2.0b HDMI resolution：up to 3840x2160P/60Hz Support Video format：8/10/12/24/36/48 bits deep color Support Audio format：LPCM/DTS/Dolby-AC3 Max bandwidth：600MHz Max baud rate：18Gbpsx3 Input cable distance：10m AWG26 HDMI1.4 standard cable Output cable distance：15m AWG26 HDMI1.4 standard cable Max working current：600mA Power adapter formatInput: AC (50Hz, 60Hz) 100V-240V; Output:DC 5V/2A Dimensions(L*W*H)：170X56X24mm
Weight：175g

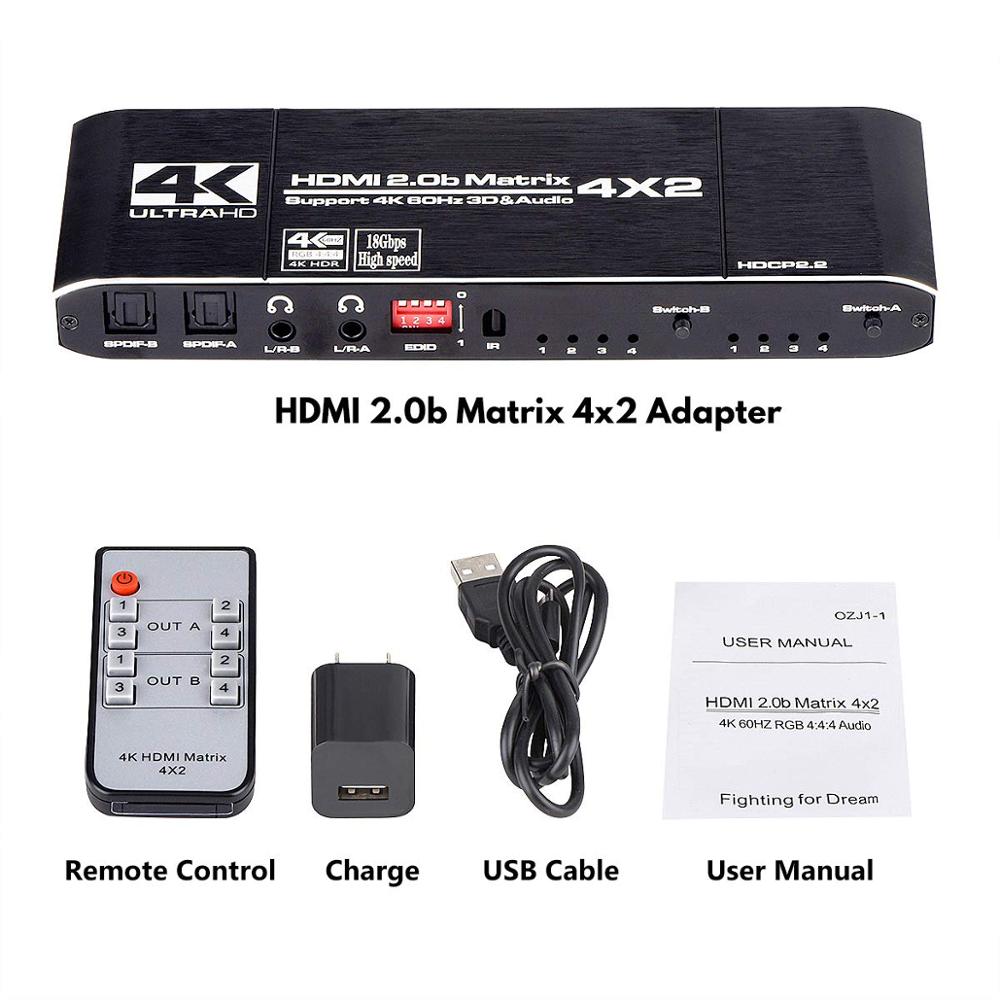

Package Contents: 1 * HDMI Matrix 4x2 1 * IR remote control 1 * Power Adapter（3 Pin） 1 * User Manual 1 * Box packaging
